The MSP430F5438A-ET is an ultralow-power microcontroller. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in 3.5 µs (typical).
The MSP430F5438A-ET is a microcontroller configuration with three 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC), up to 4 universal serial communication interfaces (USCIs), a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, and up to 87 I/O pins. For complete module descriptions, see the MSP430F5xx and MSP430F6xx Family User's Guide.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
PART NUMBER (1) | PACKAGE | BODY SIZE (2) |
---|---|---|
M430F5438AQZCARET | nFBGA (113) | 7 mm × 7 mm |
M430F5438AMZCARET | nFBGA (113) | 7 mm × 7 mm |
M430F5438AQGCARET | nFBGA (113) | 7 mm × 7 mm |
M430F5438AMGCARET | nFBGA (113) | 7 mm × 7 mm |
M430F5438AQZQWRET(3) | MicroStar Junior™ BGA (113) | 7 mm × 7 mm |
Figure 4-1 shows the functional block diagram.
Changes from Revision * (October 2019) to Revision A (February 2021)

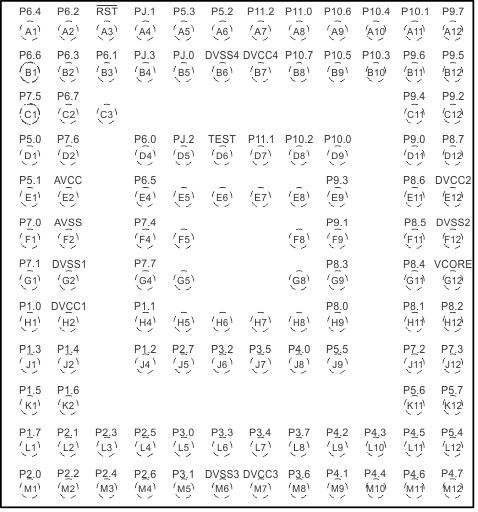

Figure 6-1 shows the pinout for the 113-pin ZCA, GCA, and ZQW packages. Only the default signal names are shown here; for all multiplexed signals, see Section 6.2.
Table 6-1 describes the signals.
SIGNAL NAME | NO. | I/O | DESCRIPTION |
---|---|---|---|
P6.4/A4 | A1 | I/O | General-purpose digital I/O Analog input A4 – ADC |
P6.5/A5 | E4 | I/O | General-purpose digital I/O Analog input A5 – ADC |
P6.6/A6 | B1 | I/O | General-purpose digital I/O Analog input A6 – ADC |
P6.7/A7 | C2 | I/O | General-purpose digital I/O Analog input A7 – ADC |
P7.4/A12 | F4 | I/O | General-purpose digital I/O Analog input A12 –ADC |
P7.5/A13 | C1 | I/O | General-purpose digital I/O Analog input A13 – ADC |
P7.6/A14 | D2 | I/O | General-purpose digital I/O Analog input A14 – ADC |
P7.7/A15 | G4 | I/O | General-purpose digital I/O Analog input A15 – ADC |
P5.0/A8/VREF+/VeREF+ | D1 | I/O | General-purpose digital I/O Analog input A8 – ADC Output of reference voltage to the ADC Input for an external reference voltage to the ADC |
P5.1/A9/VREF-/VeREF- | E1 | I/O | General-purpose digital I/O Analog input A9 – ADC Negative terminal for the ADC's reference voltage for both sources, the internal reference voltage, or an external applied reference voltage |
AVCC | E2 | Analog power supply | |
AVSS | F2 | Analog ground supply | |
P7.0/XIN | F1 | I/O | General-purpose digital I/O Input terminal for crystal oscillator XT1 |
P7.1/XOUT | G1 | I/O | General-purpose digital I/O Output terminal of crystal oscillator XT1 |
DVSS1 | G2 | Digital ground supply | |
DVCC1 | H2 | Digital power supply | |
P1.0/TA0CLK/ACLK | H1 | I/O | General-purpose digital I/O with port interrupt TA0 clock signal TACLK input ACLK output (divided by 1, 2, 4, 8, 16, or 32) |
P1.1/TA0.0 | H4 | I/O | General-purpose digital I/O with port interrupt TA0 CCR0 capture: CCI0A input, compare: Out0 output BSL transmit output |
P1.2/TA0.1 | J4 | I/O | General-purpose digital I/O with port interrupt TA0 CCR1 capture: CCI1A input, compare: Out1 output BSL receive input |
P1.3/TA0.2 | J1 | I/O | General-purpose digital I/O with port interrupt TA0 CCR2 capture: CCI2A input, compare: Out2 output |
P1.4/TA0.3 | J2 | I/O | General-purpose digital I/O with port interrupt TA0 CCR3 capture: CCI3A input compare: Out3 output |
P1.5/TA0.4 | K1 | I/O | General-purpose digital I/O with port interrupt TA0 CCR4 capture: CCI4A input, compare: Out4 output |
P1.6/SMCLK | K2 | I/O | General-purpose digital I/O with port interrupt SMCLK output |
P1.7 | L1 | I/O | General-purpose digital I/O with port interrupt |
P2.0/TA1CLK/MCLK | M1 | I/O | General-purpose digital I/O with port interrupt TA1 clock signal TA1CLK input MCLK output |
P2.1/TA1.0 | L2 | I/O | General-purpose digital I/O with port interrupt TA1 CCR0 capture: CCI0A input, compare: Out0 output |
P2.2/TA1.1 | M2 | I/O | General-purpose digital I/O with port interrupt TA1 CCR1 capture: CCI1A input, compare: Out1 output |
P2.3/TA1.2 | L3 | I/O | General-purpose digital I/O with port interrupt TA1 CCR2 capture: CCI2A input, compare: Out2 output |
P2.4/RTCCLK | M3 | I/O | General-purpose digital I/O with port interrupt RTCCLK output |
P2.5 | L4 | I/O | General-purpose digital I/O with port interrupt |
P2.6/ACLK | M4 | I/O | General-purpose digital I/O with port interrupt ACLK output (divided by 1, 2, 4, 8, 16, or 32) |
P2.7/ADC12CLK/DMAE0 | J5 | I/O | General-purpose digital I/O with port interrupt Conversion clock output ADC DMA external trigger input |
P3.0/UCB0STE/UCA0CLK | L5 | I/O | General-purpose digital I/O Slave transmit enable – USCI_B0 SPI mode Clock signal input – USCI_A0 SPI slave mode Clock signal output – USCI_A0 SPI master mode |
P3.1/UCB0SIMO/UCB0SDA | M5 | I/O | General-purpose digital I/O Slave in, master out – USCI_B0 SPI mode I2C data – USCI_B0 I2C mode |
P3.2/UCB0SOMI/UCB0SCL | J6 | I/O | General-purpose digital I/O Slave out, master in – USCI_B0 SPI mode I2C clock – USCI_B0 I2C mode |
P3.3/UCB0CLK/UCA0STE | L6 | I/O | General-purpose digital I/O Clock signal input – USCI_B0 SPI slave mode Clock signal output – USCI_B0 SPI master mode Slave transmit enable – USCI_A0 SPI mode |
DVSS3 | M6 | Digital ground supply | |
DVCC3 | M7 | Digital power supply | |
P3.4/UCA0TXD/UCA0SIMO | L7 | I/O | General-purpose digital I/O Transmit data – USCI_A0 UART mode Slave in, master out – USCI_A0 SPI mode |
P3.5/UCA0RXD/UCA0SOMI | J7 | I/O | General-purpose digital I/O Receive data – USCI_A0 UART mode Slave out, master in – USCI_A0 SPI mode |
P3.6/UCB1STE/UCA1CLK | M8 | I/O | General-purpose digital I/O Slave transmit enable – USCI_B1 SPI mode Clock signal input – USCI_A1 SPI slave mode Clock signal output – USCI_A1 SPI master mode |
P3.7/UCB1SIMO/UCB1SDA | L8 | I/O | General-purpose digital I/O Slave in, master out – USCI_B1 SPI mode I2C data – USCI_B1 I2C mode |
P4.0/TB0.0 | J8 | I/O | General-purpose digital I/O TB0 capture CCR0: CCI0A/CCI0B input, compare: Out0 output |
P4.1/TB0.1 | M9 | I/O | General-purpose digital I/O TB0 capture CCR1: CCI1A/CCI1B input, compare: Out1 output |
P4.2/TB0.2 | L9 | I/O | General-purpose digital I/O TB0 capture CCR2: CCI2A/CCI2B input, compare: Out2 output |
P4.3/TB0.3 | L10 | I/O | General-purpose digital I/O TB0 capture CCR3: CCI3A/CCI3B input, compare: Out3 output |
P4.4/TB0.4 | M10 | I/O | General-purpose digital I/O TB0 capture CCR4: CCI4A/CCI4B input, compare: Out4 output |
P4.5/TB0.5 | L11 | I/O | General-purpose digital I/O TB0 capture CCR5: CCI5A/CCI5B input, compare: Out5 output |
P4.6/TB0.6 | M11 | I/O | General-purpose digital I/O TB0 capture CCR6: CCI6A/CCI6B input, compare: Out6 output |
P4.7/TB0CLK/SMCLK | M12 | I/O | General-purpose digital I/O TB0 clock input SMCLK output |
P5.4/UCB1SOMI/UCB1SCL | L12 | I/O | General-purpose digital I/O Slave out, master in – USCI_B1 SPI mode I2C clock – USCI_B1 I2C mode |
P5.5/UCB1CLK/UCA1STE | J9 | I/O | General-purpose digital I/O Clock signal input – USCI_B1 SPI slave mode Clock signal output – USCI_B1 SPI master mode Slave transmit enable – USCI_A1 SPI mode |
P5.6/UCA1TXD/UCA1SIMO | K11 | I/O | General-purpose digital I/O Transmit data – USCI_A1 UART mode Slave in, master out – USCI_A1 SPI mode |
P5.7/UCA1RXD/UCA1SOMI | K12 | I/O | General-purpose digital I/O Receive data – USCI_A1 UART mode Slave out, master in – USCI_A1 SPI mode |
P7.2/TB0OUTH/SVMOUT | J11 | I/O | General-purpose digital I/O Switch all PWM outputs high impedance – Timer TB0 SVM output |
P7.3/TA1.2 | J12 | I/O | General-purpose digital I/O TA1 CCR2 capture: CCI2B input, compare: Out2 output |
P8.0/TA0.0 | H9 | I/O | General-purpose digital I/O TA0 CCR0 capture: CCI0B input, compare: Out0 output |
P8.1/TA0.1 | H11 | I/O | General-purpose digital I/O TA0 CCR1 capture: CCI1B input, compare: Out1 output |
P8.2/TA0.2 | H12 | I/O | General-purpose digital I/O TA0 CCR2 capture: CCI2B input, compare: Out2 output |
P8.3/TA0.3 | G9 | I/O | General-purpose digital I/O TA0 CCR3 capture: CCI3B input, compare: Out3 output |
P8.4/TA0.4 | G11 | I/O | General-purpose digital I/O TA0 CCR4 capture: CCI4B input, compare: Out4 output |
VCORE(2) | G12 | Regulated core power supply output (internal use only, no external current loading) | |
DVSS2 | F12 | Digital ground supply | |
DVCC2 | E12 | Digital power supply | |
P8.5/TA1.0 | F11 | I/O | General-purpose digital I/O TA1 CCR0 capture: CCI0B input, compare: Out0 output |
P8.6/TA1.1 | E11 | I/O | General-purpose digital I/O TA1 CCR1 capture: CCI1B input, compare: Out1 output |
P8.7 | D12 | I/O | General-purpose digital I/O |
P9.0/UCB2STE/UCA2CLK | D11 | I/O | General-purpose digital I/O Slave transmit enable – USCI_B2 SPI mode Clock signal input – USCI_A2 SPI slave mode Clock signal output – USCI_A2 SPI master mode |
P9.1/UCB2SIMO/UCB2SDA | F9 | I/O | General-purpose digital I/O Slave in, master out – USCI_B2 SPI mode I2C data – USCI_B2 I2C mode |
P9.2/UCB2SOMI/UCB2SCL | C12 | I/O | General-purpose digital I/O Slave out, master in – USCI_B2 SPI mode I2C clock – USCI_B2 I2C mode |
P9.3/UCB2CLK/UCA2STE | E9 | I/O | General-purpose digital I/O Clock signal input – USCI_B2 SPI slave mode Clock signal output – USCI_B2 SPI master mode Slave transmit enable – USCI_A2 SPI mode |
P9.4/UCA2TXD/UCA2SIMO | C11 | I/O | General-purpose digital I/O Transmit data – USCI_A2 UART mode Slave in, master out – USCI_A2 SPI mode |
P9.5/UCA2RXD/UCA2SOMI | B12 | I/O | General-purpose digital I/O Receive data – USCI_A2 UART mode Slave out, master in – USCI_A2 SPI mode |
P9.6 | B11 | I/O | General-purpose digital I/O |
P9.7 | A12 | I/O | General-purpose digital I/O |
P10.0/UCB3STE/UCA3CLK | D9 | I/O | General-purpose digital I/O Slave transmit enable – USCI_B3 SPI mode Clock signal input – USCI_A3 SPI slave mode Clock signal output – USCI_A3 SPI master mode |
P10.1/UCB3SIMO/UCB3SDA | A11 | I/O | General-purpose digital I/O Slave in, master out – USCI_B3 SPI mode I2C data – USCI_B3 I2C mode |
P10.2/UCB3SOMI/UCB3SCL | D8 | I/O | General-purpose digital I/O Slave out, master in – USCI_B3 SPI mode I2C clock – USCI_B3 I2C mode |
P10.3/UCB3CLK/UCA3STE | B10 | I/O | General-purpose digital I/O Clock signal input – USCI_B3 SPI slave mode Clock signal output – USCI_B3 SPI master mode Slave transmit enable – USCI_A3 SPI mode |
P10.4/UCA3TXD/UCA3SIMO | A10 | I/O | General-purpose digital I/O Transmit data – USCI_A3 UART mode Slave in, master out – USCI_A3 SPI mode |
P10.5/UCA3RXD/UCA3SOMI | B9 | I/O | General-purpose digital I/O Receive data – USCI_A3 UART mode Slave out, master in – USCI_A3 SPI mode |
P10.6 | A9 | I/O | General-purpose digital I/O |
P10.7 | B8 | I/O | General-purpose digital I/O |
P11.0/ACLK | A8 | I/O | General-purpose digital I/O ACLK output (divided by 1, 2, 4, 8, 16, or 32) |
P11.1/MCLK | D7 | I/O | General-purpose digital I/O MCLK output |
P11.2/SMCLK | A7 | I/O | General-purpose digital I/O SMCLK output |
DVCC4 | B7 | Digital power supply | |
DVSS4 | B6 | Digital ground supply | |
P5.2/XT2IN | A6 | I/O | General-purpose digital I/O Input terminal for crystal oscillator XT2 |
P5.3/XT2OUT | A5 | I/O | General-purpose digital I/O Output terminal of crystal oscillator XT2 |
TEST/SBWTCK(3) | D6 | I | Test mode pin – Selects four wire JTAG operation. Spy-Bi-Wire input clock when Spy-Bi-Wire operation activated |
PJ.0/TDO(4) | B5 | I/O | General-purpose digital I/O JTAG test data output port |
PJ.1/TDI/TCLK(4) | A4 | I/O | General-purpose digital I/O JTAG test data input or test clock input |
PJ.2/TMS(4) | D5 | I/O | General-purpose digital I/O JTAG test mode select |
PJ.3/TCK(4) | B4 | I/O | General-purpose digital I/O JTAG test clock |
RST/NMI/SBWTDIO(3) | A3 | I/O | Reset input active low Non-maskable interrupt input Spy-Bi-Wire data input/output when Spy-Bi-Wire operation activated. |
P6.0/A0 | D4 | I/O | General-purpose digital I/O Analog input A0 – ADC |
P6.1/A1 | B3 | I/O | General-purpose digital I/O Analog input A1 – ADC |
P6.2/A2 | A2 | I/O | General-purpose digital I/O Analog input A2 – ADC |
P6.3/A3 | B2 | I/O | General-purpose digital I/O Analog input A3 – ADC |
Reserved | (1) |
