DATA SHEET
SN65EPT22 3.3 V Dual LVTTL/LVCMOS to Differential LVPECL Buffer
1 Features
- Dual 3.3V LVTTL to LVPECL Buffer
- Operating Range
- LVPECL VCC = 3.0 V to 3.6 V With
GND = 0 V
- LVPECL VCC = 3.0 V to 3.6 V With
- Support for Clock Frequencies to 2.0 GHz (typ)
- 420 ps Typical Propagation Delay
- Deterministic HIGH Output Value for Open Input Conditions
- Built-in Temperature Compensation
- Drop in Compatible to MC100ELT23
- PNP Single Ended Inputs for Minimal Loading
2 Applications
- Data and Clock Transmission Over Backplane
- Signaling Level Conversion
3 Description
The SN65EPT22 is a low power dual LVTTL to LVPECL translator device. The device includes circuitry to maintain known logic HIGH level when inputs are in open condition. The SN65EPT22 is housed in an industry standard SOIC-8 package and is also available in TSSOP-8 package option.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN65EPT22 | SOIC (8) | 4.90mm x 3.91mm |
| VSSOP (8) | 3.00mm x 3.00mm |
- For all available packages, see the orderable addendum at the end of the datasheet.

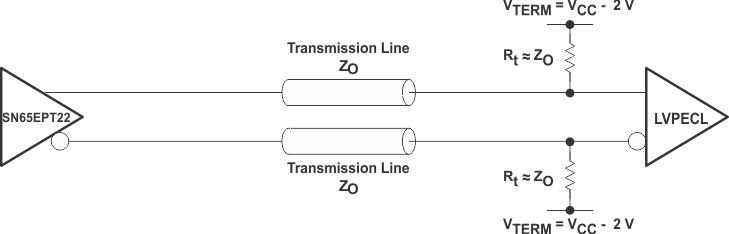

4 Simplified Schematic
5 Revision History
Changes from A Revision (November 2010) to B Revision
- Deleted the Ordering Information tableGo
- Added the Device Information tableGo
- Added the Simplified SchematicGo
- Added the Handling RatingsGo
- Added the Device and Documentation Support and Mechanical, Packaging, and Orderable InformationGo
Changes from * Revision (November 2010) to A Revision
- Changed SN65EPT22 to EPT22 (2 places) in Ordering Information Table under Part Marking column Go
