SN74LV8T573-EP Enhanced Product, Octal Transparent D-Type Latches with 3-State Outputs and Logic Level Shifter

1 Features

Wide operating range of 1.65V to 5.5V
5.5V tolerant input pins
Single-supply voltage translator (refer to LVxT Enhanced Input Voltage):
- Up translation:
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation:
  - 5.0V, 3.3V, 2.5V to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V
Up to 150Mbps with 5V or 3.3V V_CC
Supports standard function pinout
Latch-up performance exceeds 250mA
per JESD 17
Supports defense and aerospace applications:
- Controlled baseline
- One assembly and test site
- One fabrication site
- Extended product life cycle
- Product traceability

2 Applications

3 Description

The SN74LV8T573-EP devices are octal transparent
D-type latches that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

While the latch-enable (LE) input is high, the
Q outputs respond to the data (D) inputs. When LE is low, the outputs are latched to retain the data that was set up.

Package Information

PART NUMBER	PACKAGE⁽¹⁾	PACKAGE SIZE⁽²⁾	BODY SIZE⁽³⁾
SN74LV8T573-EP	PW (TSSOP, 20)	6.5mm × 6.4mm	6.5mm × 4.4mm

(1) For more information, see the orderable addendum at the end of the data sheet.

(2) The package size (length × width) is a nominal value and includes pins, where applicable

(3) The body size (length × width) is a nominal value and does not include pins.

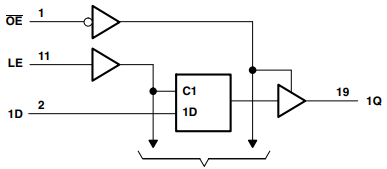

To Seven Other Channels

Logic Diagram (Positive Logic)
