DATA SHEET
TL97x Output Rail-To-Rail Very-Low-Noise Operational Amplifiers
1 Features
- Rail-to-Rail Output Voltage Swing:
±2.4 V at VCC = ±2.5 V - Very Low Noise Level: 4 nV/√Hz
- Ultra-Low Distortion: 0.003%
- High Dynamic Features: 12 MHz, 5 V/μs
- Operating Range: 2.7 V to 12 V
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
- 1500-V Charged-Device Model
2 Applications
- Portable Equipment
- Music Players
- Tablets
- Cell Phones
- Instrumentation and Sensors
- Professional Audio Circuits
3 Description
The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification.
The TL971 is housed in the space-saving 5-pin SOT-23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).
Device Information(1)
| PART NUMBER | PACKAGE (PIN) | BODY SIZE (NOM) |
|---|---|---|
| TL971 | SOIC (8) | 4.90 mm × 3.90 mm |
| SOT-23 (5) | 2.80 mm × 2.90 mm | |
| TL972 | MSOP (8) | 3.00 mm × 3.00 mm |
| PDIP (8) | 9.60 mm × 6.40 mm | |
| SOIC (8) | 4.90 mm × 3.90 mm | |
| TSSOP (8) | 3.00 mm × 4.40 mm | |
| TL974 | PDIP (14) | 19.30 mm × 6.40 mm |
| SOIC (14) | 8.60 mm × 3.90 mm | |
| TSSOP (14) | 5.00 mm × 4.40 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.
4 Simplified Schematic
5 Revision History
Changes from G Revision (May 2012) to H Revision
- Added Applications, Device Information table, Pin Functions table, ESD Ratings table, Thermal Information table, Typical Characteristics, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section.Go
- Deleted Ordering Information table.Go
Changes from F Revision (December 2009) to G Revision
- Changed slew rate MIN value.Go

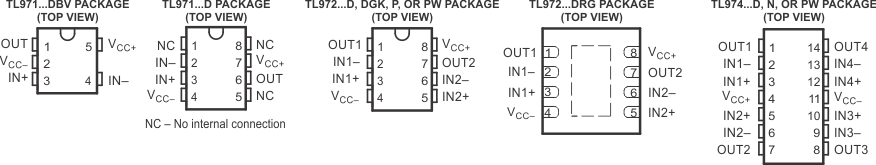

6 Pin Configuration and Functions
Pin Functions
| PIN | TYPE | DESCRIPTION | |||||
|---|---|---|---|---|---|---|---|
| NAME | TL971 | TL971 | TL972 | TL974 | |||
| DBV | D | D, DGK, P, PW | DRG | D, N, PW | |||
| IN+ | 3 | 3 | — | — | — | I | Noninverting input |
| IN– | 4 | 2 | — | — | — | I | Inverting input |
| IN1+ | — | — | 3 | 3 | 3 | I | Noninverting input |
| IN1– | — | — | 2 | 2 | 2 | I | Inverting input |
| IN2+ | — | — | 5 | 5 | 5 | I | Noninverting input |
| IN2– | — | — | 6 | 6 | 6 | I | Inverting input |
| IN3+ | — | — | — | — | 10 | I | Noninverting input |
| IN3– | — | — | — | — | 9 | I | Inverting input |
| IN4+ | — | — | — | — | 12 | I | Noninverting input |
| IN4– | — | — | — | — | 13 | I | Inverting input |
| NC | — | 1 | — | — | — | — | No Connect |
| 5 | |||||||
| 8 | |||||||
| OUT | 1 | 6 | — | — | — | O | Output |
| OUT1 | — | — | 1 | 1 | 1 | O | Output |
| OUT2 | — | — | 7 | 7 | 7 | O | Output |
| OUT3 | — | — | — | — | 8 | O | Output |
| OUT4 | — | — | — | — | 14 | O | Output |
| VCC+ | 5 | 7 | 8 | 8 | 4 | - | Positive supply |
| VCC– | 2 | 4 | 4 | 4 | 11 | - | Negative supply |
