LMx24-N, LM2902-N Low-Power, Quad-Operational Amplifiers

1 Features

Internally Frequency Compensated for Unity Gain
Large DC Voltage Gain 100 dB
Wide Bandwidth (Unity Gain) 1 MHz
(Temperature Compensated)
Wide Power Supply Range:
- Single Supply 3 V to 32 V
- or Dual Supplies ±1.5 V to ±16 V
Very Low Supply Current Drain (700 μA)
—Essentially Independent of Supply Voltage
Low Input Biasing Current 45 nA
(Temperature Compensated)
Low Input Offset Voltage 2 mV
and Offset Current: 5 nA
Input Common-Mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Large Output Voltage Swing 0 V to V⁺ − 1.5 V
Advantages:
- Eliminates Need for Dual Supplies
- Four Internally Compensated Op Amps in a Single Package
- Allows Direct Sensing Near GND and V_OUT also Goes to GND
- Compatible With All Forms of Logic
- Power Drain Suitable for Battery Operation
- In the Linear Mode the Input Common-Mode, Voltage Range Includes Ground and the Output Voltage
- Can Swing to Ground, Even Though Operated from Only a Single Power Supply Voltage
- Unity Gain Cross Frequency is Temperature Compensated
- Input Bias Current is Also Temperature Compensated

2 Applications

Transducer Amplifiers
DC Gain Blocks
Conventional Op Amp Circuits

3 Description

The LM124-N series consists of four independent, high-gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split-power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124-N series can directly operate off of the standard 5-V power supply voltage which is used in digital systems and easily provides the required interface electronics without requiring the additional ±15 V power supplies.

Device Information⁽¹⁾

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM124-N	CDIP (14)	19.56 mm × 6.67 mm
LM224-N	CDIP (14)	19.56 mm × 6.67 mm
LM324-N	CDIP (14)	19.56 mm × 6.67 mm
	PDIP (14)	19.177 mm × 6.35 mm
	SOIC (14)	8.65 mm × 3.91 mm
	TSSOP (14)	5.00 mm × 4.40 mm
LM2902-N	PDIP (14)	19.177 mm × 6.35 mm
	SOIC (14)	8.65 mm × 3.91 mm
	TSSOP (14)	5.00 mm × 4.40 mm

For all available packages, see the orderable addendum at the end of the datasheet.

Schematic Diagram

LM124-N LM224-N LM2902-N LM324-N 929902.png

4 Revision History

Changes from C Revision (November 2012) to D Revision

Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information sectionGo

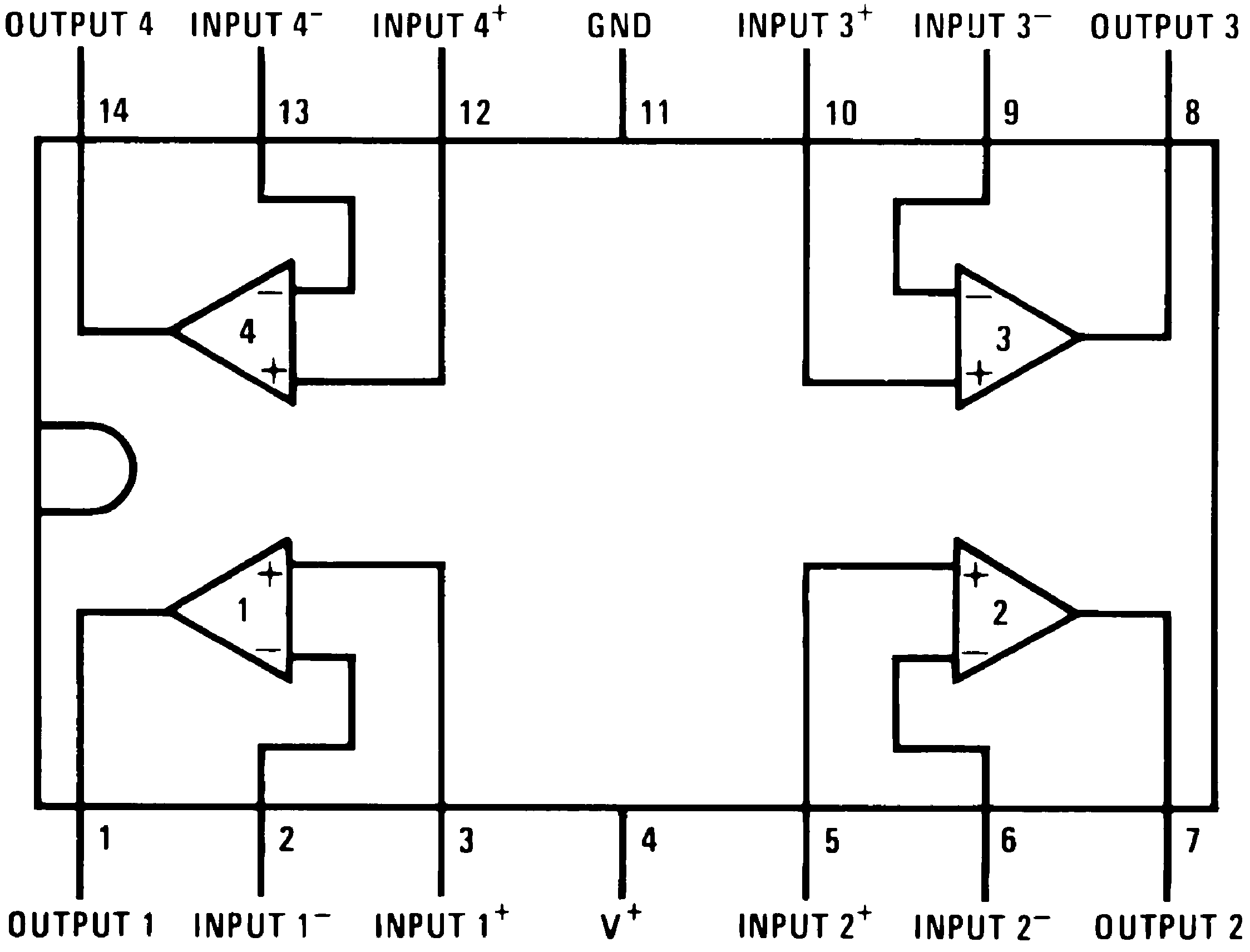

5 Pin Configuration and Functions

J Package

14-Pin CDIP

Top View

LM124-N LM224-N LM2902-N LM324-N 929901.png

D Package

14-Pin SOIC

Top View

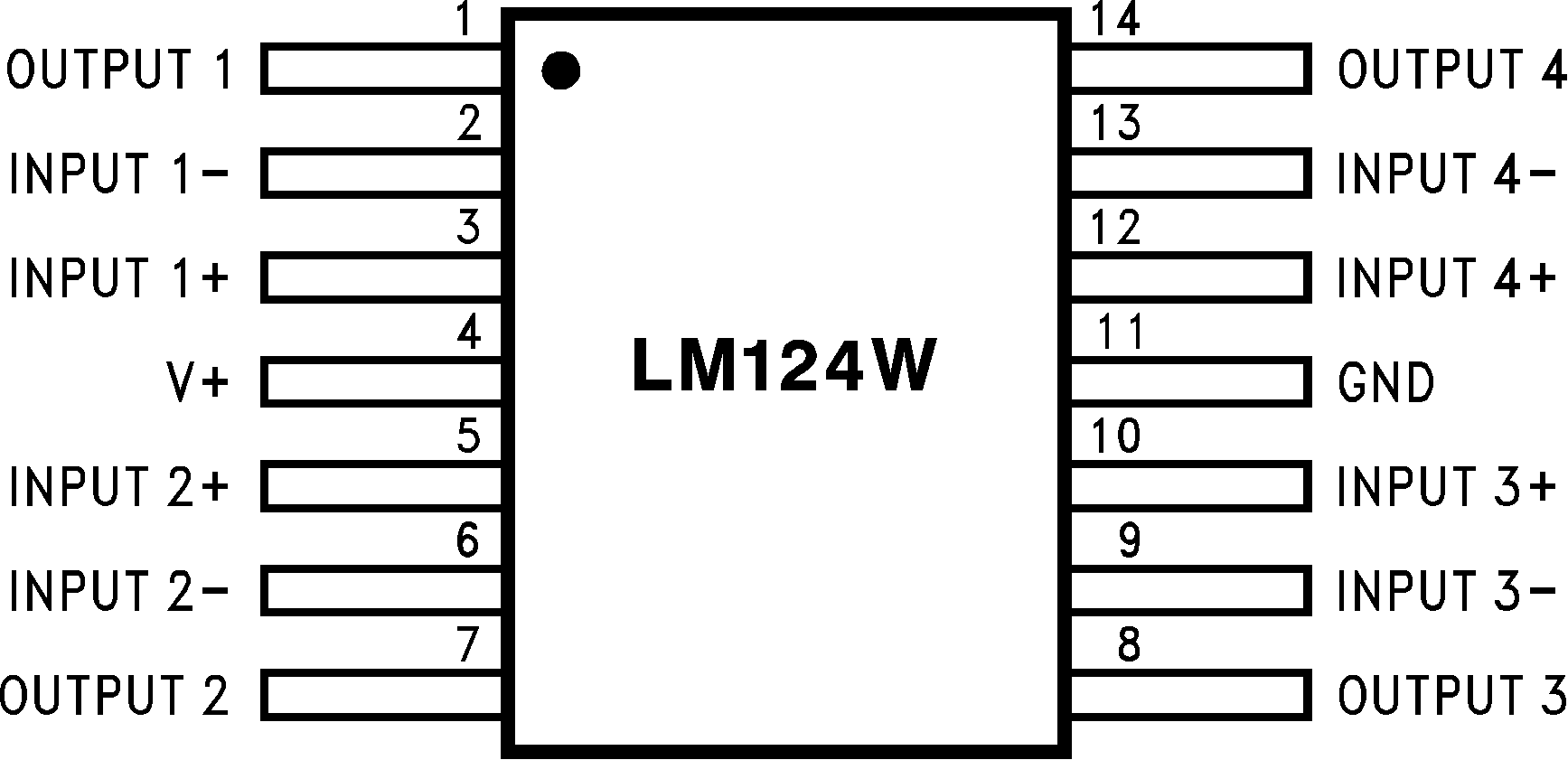

LM124-N LM224-N LM2902-N LM324-N 929933.png

Pin Functions

PIN		TYPE	DESCRIPTION
NAME	NO.	TYPE	DESCRIPTION
OUTPUT1	1	O	Output, Channel 1
INPUT1-	2	I	Inverting Input, Channel 1
INPUT1+	3	I	Noninverting Input, Channel 1
V+	4	P	Positive Supply Voltage
INPUT2+	5	I	Nonnverting Input, Channel 2
INPUT2-	6	I	Inverting Input, Channel 2
OUTPUT2	7	O	Output, Channel 2
OUTPUT3	8	O	Output, Channel 3
INPUT3-	9	I	Inverting Input, Channel 3
INPUT3+	10	I	Noninverting Input, Channel 3
GND	11	P	Ground or Negative Supply Voltage
INPUT4+	12	I	Noninverting Input, Channel 4
INPUT4-	13	I	Inverting Input, Channel 4
OUTPUT4	14	O	Output, Channel 4

6 Specifications

6.1 Absolute Maximum Ratings

See ⁽⁵⁾⁽³⁾.

			LM124-N/LM224-N/LM324-N LM124A/LM224A/LM324A		LM2902-N
			MIN	MAX	MIN	MAX	UNIT
Supply Voltage, V⁺				32		26	V
Differential Input Voltage				32		26	V
Input Voltage			−0.3	32	−0.3	26	V
Input Current (V_IN < −0.3 V)⁽⁴⁾				50		50	mA
Power Dissipation⁽¹⁾	PDIP			1130		1130	mW
	CDIP			1260		1260	mW
	SOIC Package			800		800	mW
Output Short-Circuit to GND (One Amplifier)⁽²⁾		V⁺ ≤ 15 V and T_A = 25°C	Continuous		Continuous
Lead Temperature (Soldering, 10 seconds)				260		260	°C
Soldering Information	Dual-In-Line Package	Soldering (10 seconds)		260		260	°C
	Small Outline Package	Vapor Phase (60 seconds)		215		215	°C
	Small Outline Package	Infrared (15 seconds)		220		220	°C
Storage temperature, T_stg			–65	150	–65	150	°C

(1) For operating at high temperatures, the LM324-N/LM324A/LM2902-N must be derated based on a 125°C maximum junction temperature and a thermal resistance of 88°C/W which applies for the device soldered in a printed circuit board, operating in a still air ambient. The LM224-N/LM224A and LM124-N/LM124A can be derated based on a 150°C maximum junction temperature. The dissipation is the total of all four amplifiers—use external resistors, where possible, to allow the amplifier to saturate of to reduce the power which is dissipated in the integrated circuit.

(2) Short circuits from the output to V⁺ can cause excessive heating and eventual destruction. When considering short circuits to ground, the maximum output current is approximately 40 mA independent of the magnitude of V⁺. At values of supply voltage in excess of 15 V, continuous short-circuits can exceed the power dissipation ratings and cause eventual destruction. Destructive dissipation can result from simultaneous shorts on all amplifiers.

(3) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications.

(4) This input current will only exist when the voltage at any of the input leads is driven negative. It is due to the collector-base junction of the input PNP transistors becoming forward biased and thereby acting as input diode clamps. In addition to this diode action, there is also lateral NPN parasitic transistor action on the IC chip. This transistor action can cause the output voltages of the op amps to go to the V⁺voltage level (or to ground for a large overdrive) for the time duration that an input is driven negative. This is not destructive and normal output states will re-establish when the input voltage, which was negative, again returns to a value greater than −0.3 V (at 25°C).

(5) Refer to RETS124AX for LM124A military specifications and refer to RETS124X for LM124-N military specifications.

6.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±250	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

	MIN	MAX	UNIT
Supply Voltage (V⁺ - V^-): LM124-N/LM124A/LM224-N/LM224A/LM324-N/LM324A	3	32	V
Supply Voltage (V⁺ - V^-): LM2902-N	3	26	V
Operating Input Voltage on Input pins	0	V+	V
Operating junction temperature, T_J: LM124-N/LM124A	-55	125	°C
Operating junction temperature, T_J: L2902-N	-40	85	°C
Operating junction temperature, T_J: LM224-N/LM224A	-25	85	°C
Operating junction temperature, T_J: LM324-N/LM324A	0	70	°C

6.4 Thermal Information

THERMAL METRIC⁽¹⁾		LM124-N / LM224-N	LM324-N / LM2902-N	UNIT
		J/CDIP	D/SOIC
		14 PINS	14 PINS
R_θJA	Junction-to-ambient thermal resistance	88	88	°C/W

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics: LM124A/224A/324A

V⁺ = 5.0 V, ⁽¹⁾, unless otherwise stated

PARAMETER		TEST CONDITIONS		LM124A			LM224A			LM324A			UNIT
PARAMETER		TEST CONDITIONS		MIN	TYP	MAX	MIN	TYP	MAX	MIN	TYP	MAX	UNIT
Input Offset Voltage		T_A = 25°C⁽²⁾			1	2		1	3		2	3	mV
Input Bias Current⁽³⁾		I_IN(+) or I_IN(−), V_CM = 0 V, T_A = 25°C			20	50		40	80		45	100	nA
Input Offset Current		I_IN(+) or I_IN(−), V_CM = 0 V, T_A = 25°C			2	10		2	15		5	30	nA
Input Common-Mode Voltage Range⁽⁴⁾		V⁺ = 30 V, (LM2902-N, V⁺ = 26 V), T_A = 25°C		0		V⁺−1.5	0		V⁺−1.5	0		V⁺−1.5	V
Supply Current		Over Full Temperature Range, R_L = ∞ On All Op Amps V⁺ = 30 V (LM2902-N V⁺ = 26 V)			1.5	3		1.5	3		1.5	3	mA
Supply Current		V⁺ = 5 V			0.7	1.2		0.7	1.2		0.7	1.2	mA
Large Signal Voltage Gain		V⁺ = 15 V, R_L≥ 2 kΩ, (V_O = 1 V to 11 V), T_A = 25°C		50	100		50	100		25	100		V/mV
Common-Mode Rejection Ratio		DC, V_CM = 0 V to V⁺ − 1.5 V, T_A = 25°C		70	85		70	85		65	85		dB
Power Supply Rejection Ratio		V⁺ = 5 V to 30 V, (LM2902-N, V⁺ = 5V to 26 V), T_A = 25°C		65	100		65	100		65	100		dB
Amplifier-to-Amplifier Coupling⁽⁵⁾		f = 1 kHz to 20 kHz, T_A = 25°C, (Input Referred)			−120			−120			−120		dB
Output Current	Source	V_IN⁺ = 1 V, V_IN⁻ = 0 V, V⁺ = 15 V, V_O = 2 V, T_A = 25°C		20	40		20	40		20	40		mA
	Sink	V_IN⁻ = 1 V, V_IN⁺ = 0 V, V⁺ = 15 V, V_O = 2 V, T_A = 25°C		10	20		10	20		10	20		μA
	Sink	V_IN⁻ = 1 V, V_IN⁺ = 0 V, V⁺ = 15 V, V_O = 200 mV, T_A = 25°C		12	50		12	50		12	50		μA
Short Circuit to Ground		V⁺ = 15 V, T_A = 25°C⁽²⁾			40	60		40	60		40	60	mA
Input Offset Voltage		See⁽²⁾				4			4			5	mV
V_OS Drift		R_S = 0 Ω			7	20		7	20		7	30	μV/°C
Input Offset Current		I_IN(+) − I_IN(−), V_CM = 0 V				30			30			75	nA
I_OS Drift		R_S = 0 Ω			10	200		10	200		10	300	pA/°C
Input Bias Current		I_IN(+) or I_IN(−)			40	100		40	100		40	200	nA
Input Common-Mode Voltage Range⁽⁴⁾		V⁺ = 30 V, (LM2902-N, V⁺ = 26 V)		0		V⁺−2	0		V⁺−2	0		V⁺−2	V
Large Signal Voltage Gain		V⁺ = 15 V (V_OSwing = 1 V to 11 V), R_L ≥ 2 kΩ		25			25			15			V/mV
Output Voltage Swing	V_OH	V⁺ = 30 V (LM2902-N, V⁺ = 26 V)	R_L = 2 kΩ	26			26			26			V
	V_OH	V⁺ = 30 V (LM2902-N, V⁺ = 26 V)	R_L = 10 kΩ	27	28		27	28		27	28		V
	V_OL	V⁺ = 5 V, R_L = 10 kΩ			5	20		5	20		5	20	mV
Output Current	Source	V_O = 2 V	V_IN⁺ = +1V, V_IN⁻ = 0V, V⁺ = 15V	10	20		10	20		10	20		mA
Output Current	Sink	V_O = 2 V	V_IN⁻ = +1V, V_IN⁺ = 0V, V⁺ = 15V	10	15		5	8		5	8		mA

(1) These specifications are limited to −55°C ≤ T_A ≤ +125°C for the LM124-N/LM124A. With the LM224-N/LM224A, all temperature specifications are limited to −25°C ≤ T_A ≤ +85°C, the LM324-N/LM324A temperature specifications are limited to 0°C ≤ T_A ≤ +70°C, and the LM2902-N specifications are limited to −40°C ≤ T_A ≤ +85°C.

(2) V_O ≃ 1.4V, R_S = 0 Ω with V⁺ from 5 V to 30 V; and over the full input common-mode range (0 V to V⁺ − 1.5 V) for LM2902-N, V⁺ from 5 V to 26 V.

(3) The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of the output so no loading change exists on the input lines.

(4) The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3 V (at 25°C). The upper end of the common-mode voltage range is V⁺ − 1.5 V (at 25°C), but either or both inputs can go to 32 V without damage (26 V for LM2902-N), independent of the magnitude of V⁺.

(5) Due to proximity of external components, insure that coupling is not originating via stray capacitance between these external parts. This typically can be detected as this type of capacitance increases at higher frequencies.

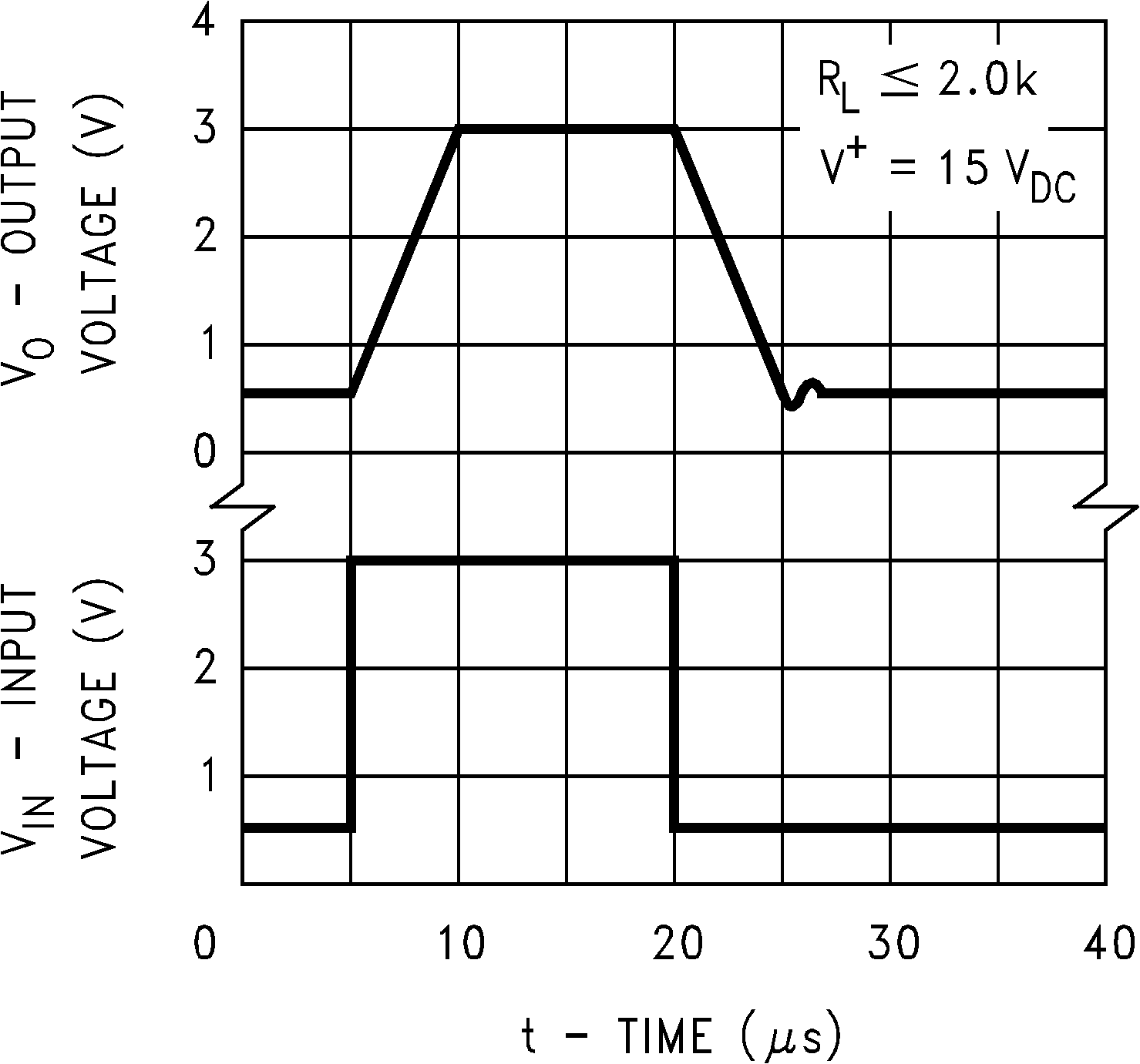

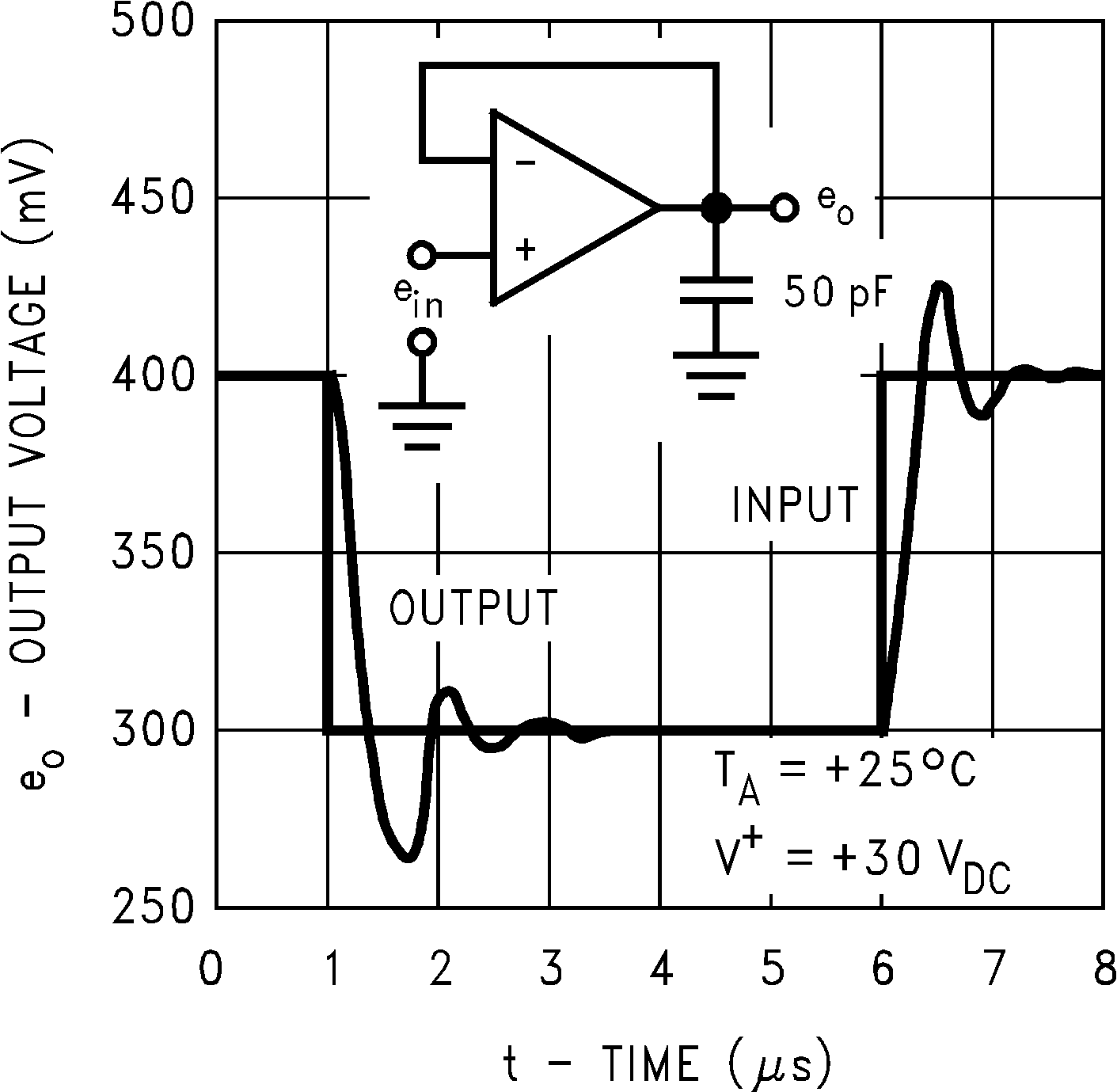

6.6 Electrical Characteristics: LM124-N/224-N/324-N/2902-N

V⁺ = +5.0V, ⁽¹⁾, unless otherwise stated

PARAMETER		TEST CONDITIONS		LM124-N / LM224-N			LM324-N			LM2902-N			UNIT
PARAMETER		TEST CONDITIONS		MIN	TYP	MAX	MIN	TYP	MAX	MIN	TYP	MAX	UNIT
Input Offset Voltage		T_A = 25°C⁽²⁾			2	5		2	7		2	7	mV

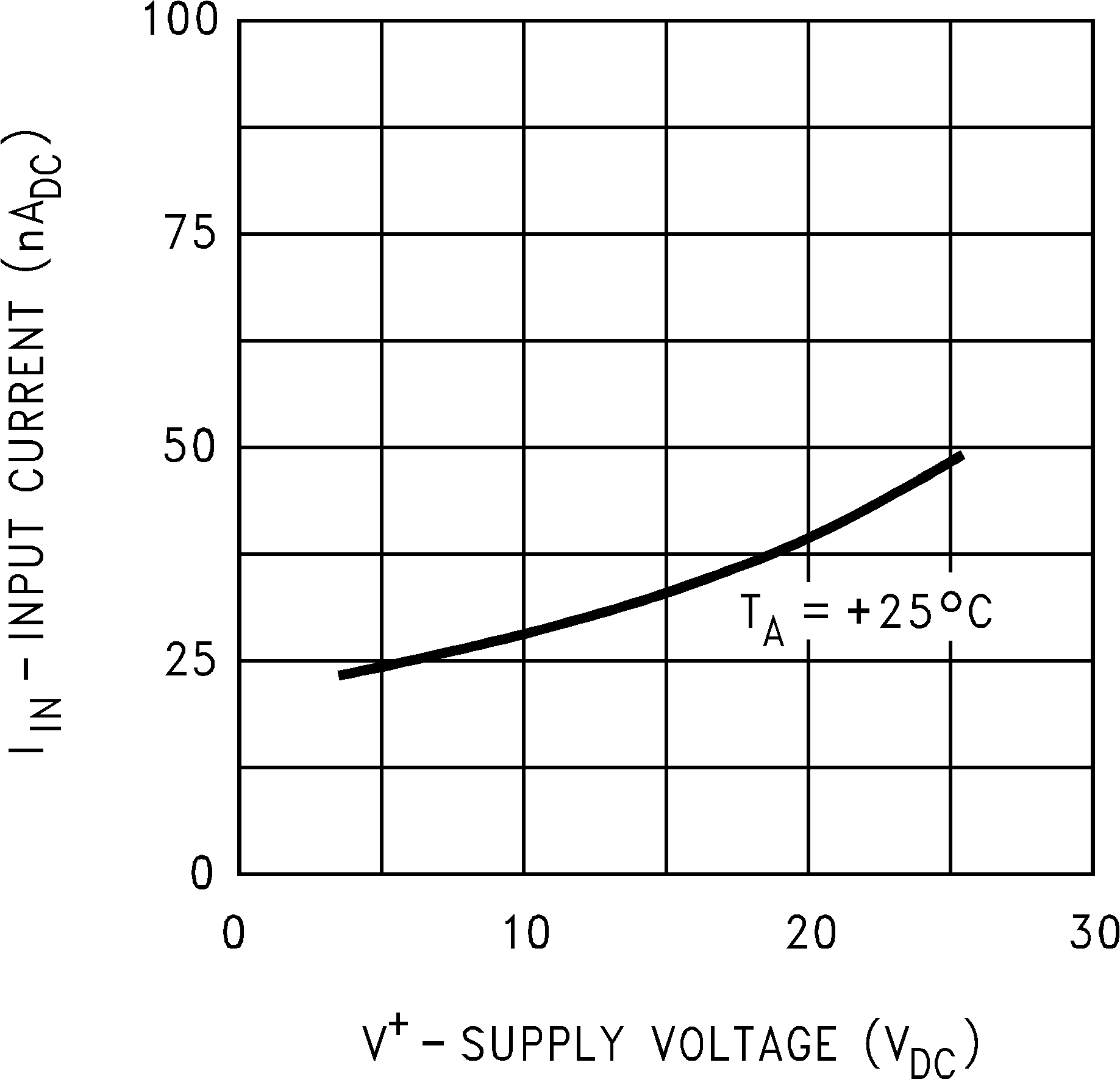

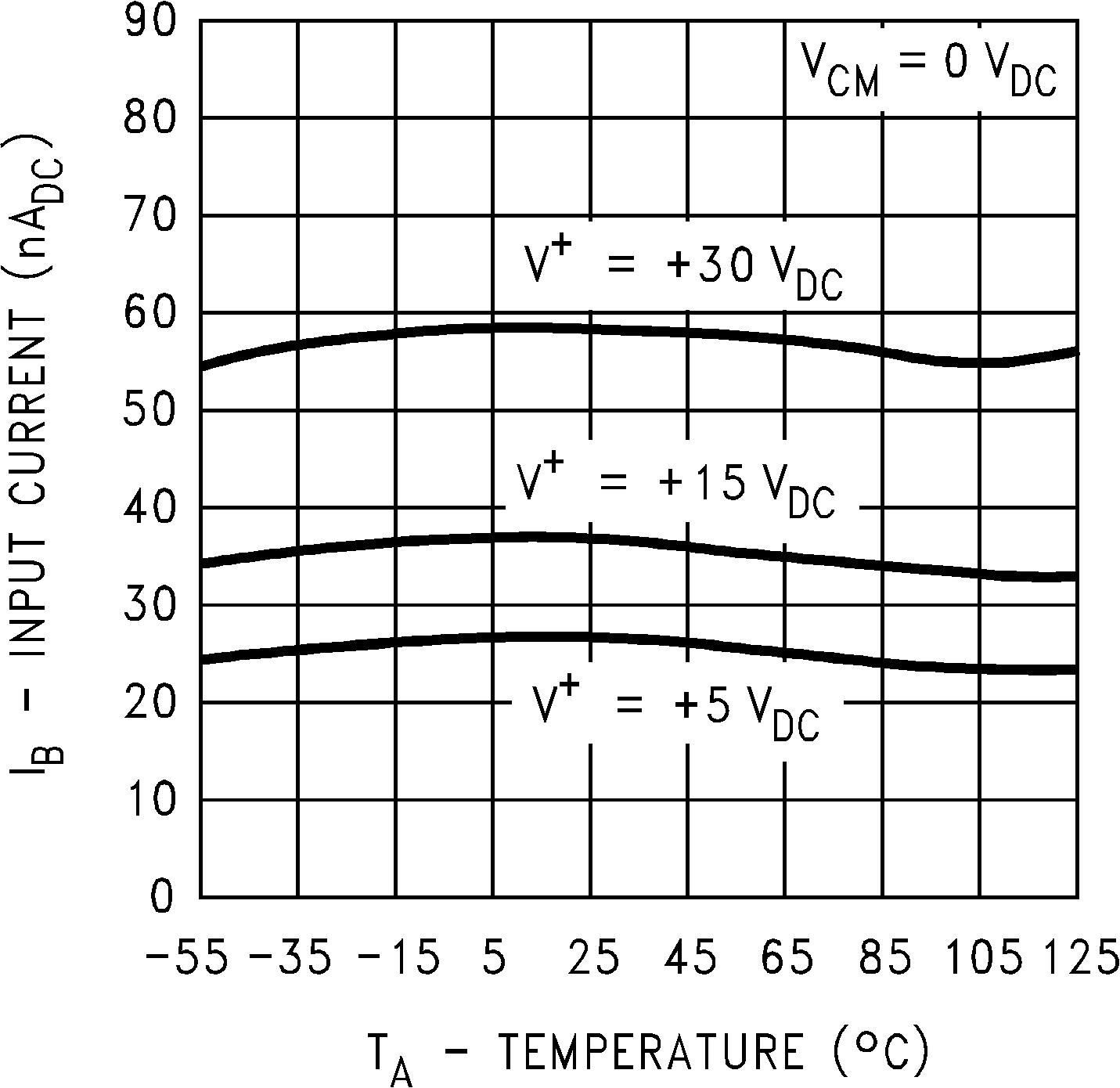

Input Bias Current⁽³⁾		I_IN(+) or I_IN(−), V_CM = 0 V, T_A = 25°C			45	150		45	250		45	250	nA
Input Offset Current		I_IN(+) or I_IN(−), V_CM = 0 V, T_A = 25°C			3	30		5	50		5	50	nA

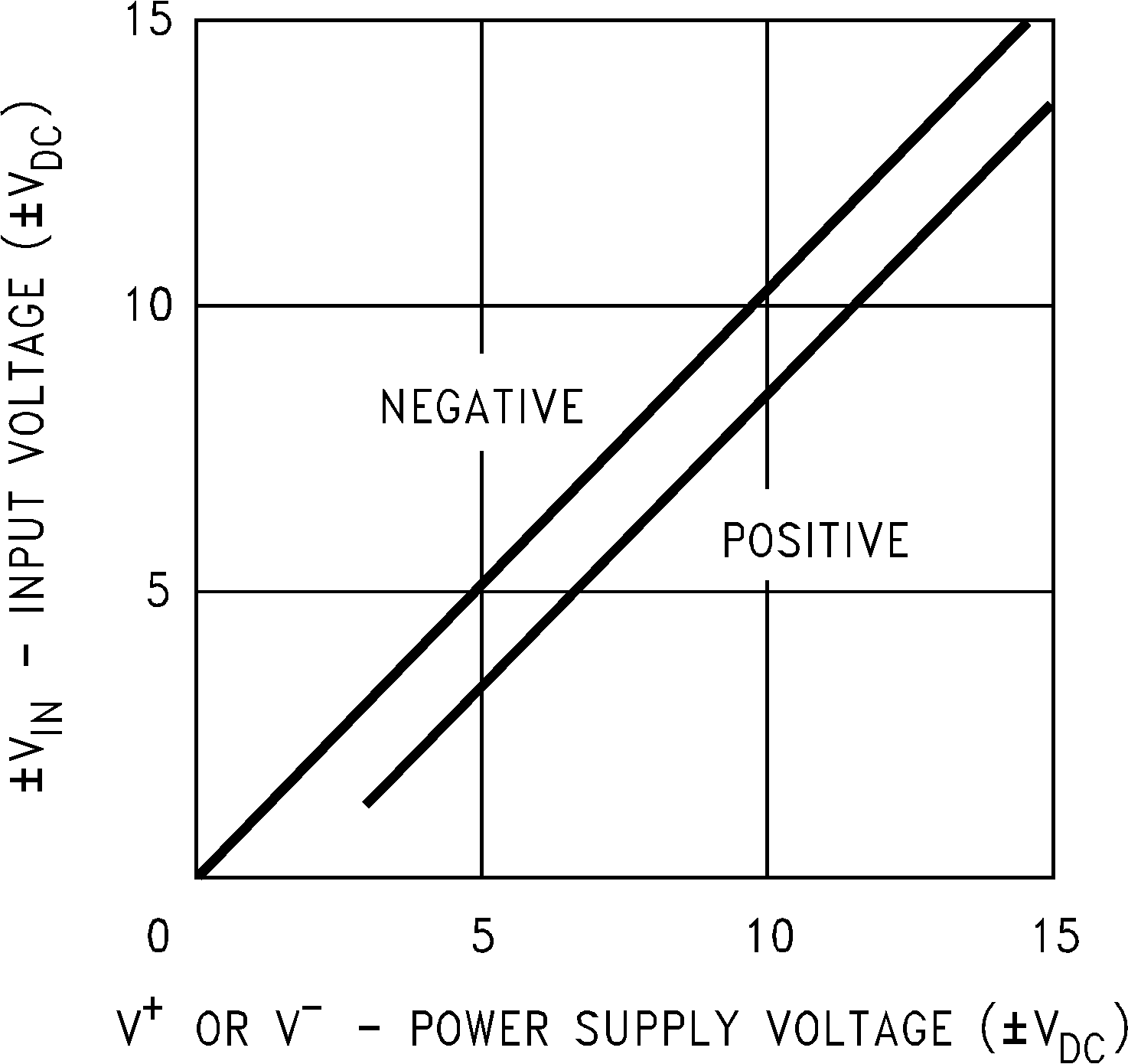

Input Common-Mode Voltage Range⁽⁴⁾		V⁺ = 30 V, (LM2902-N, V⁺ = 26V), T_A = 25°C		0		V⁺−1.5	0		V⁺−1.5	0		V⁺−1.5	V

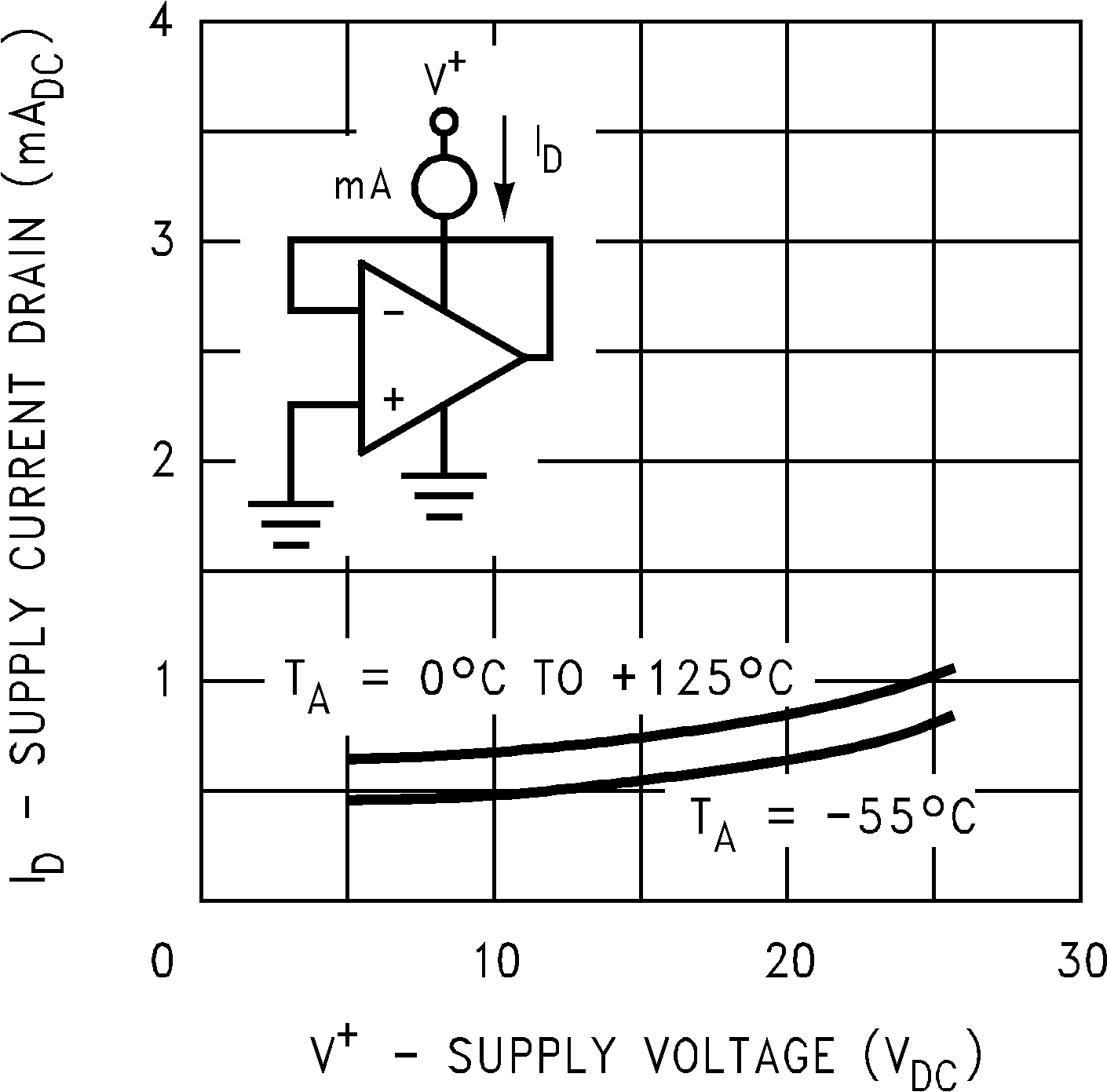

Supply Current		Over Full Temperature Range R_L = ∞ On All Op Amps, V⁺ = 30 V (LM2902-N V⁺ = 26 V)			1.5	3		1.5	3		1.5	3	mA
Supply Current		V⁺ = 5 V			0.7	1.2		0.7	1.2		0.7	1.2	mA

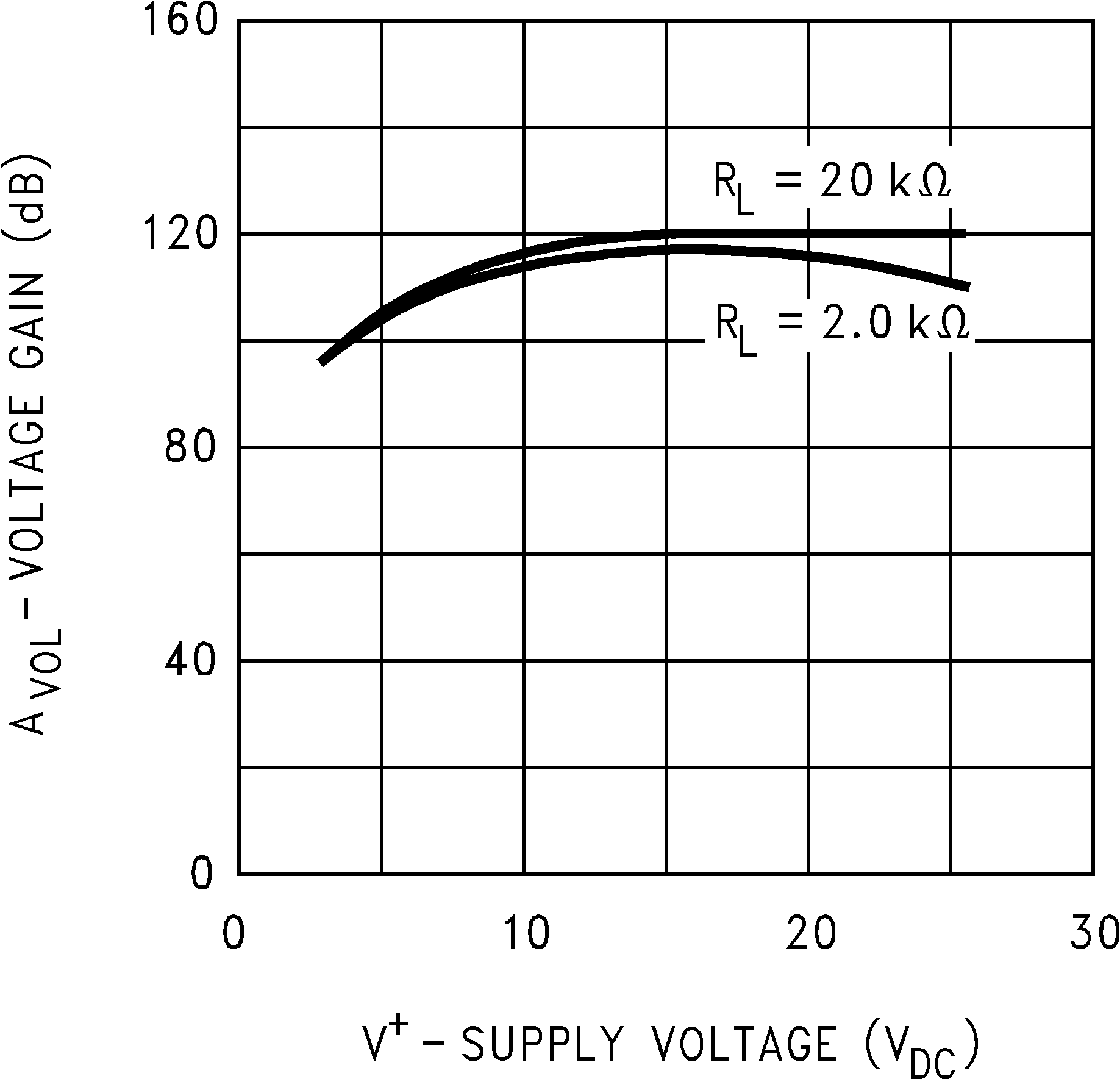

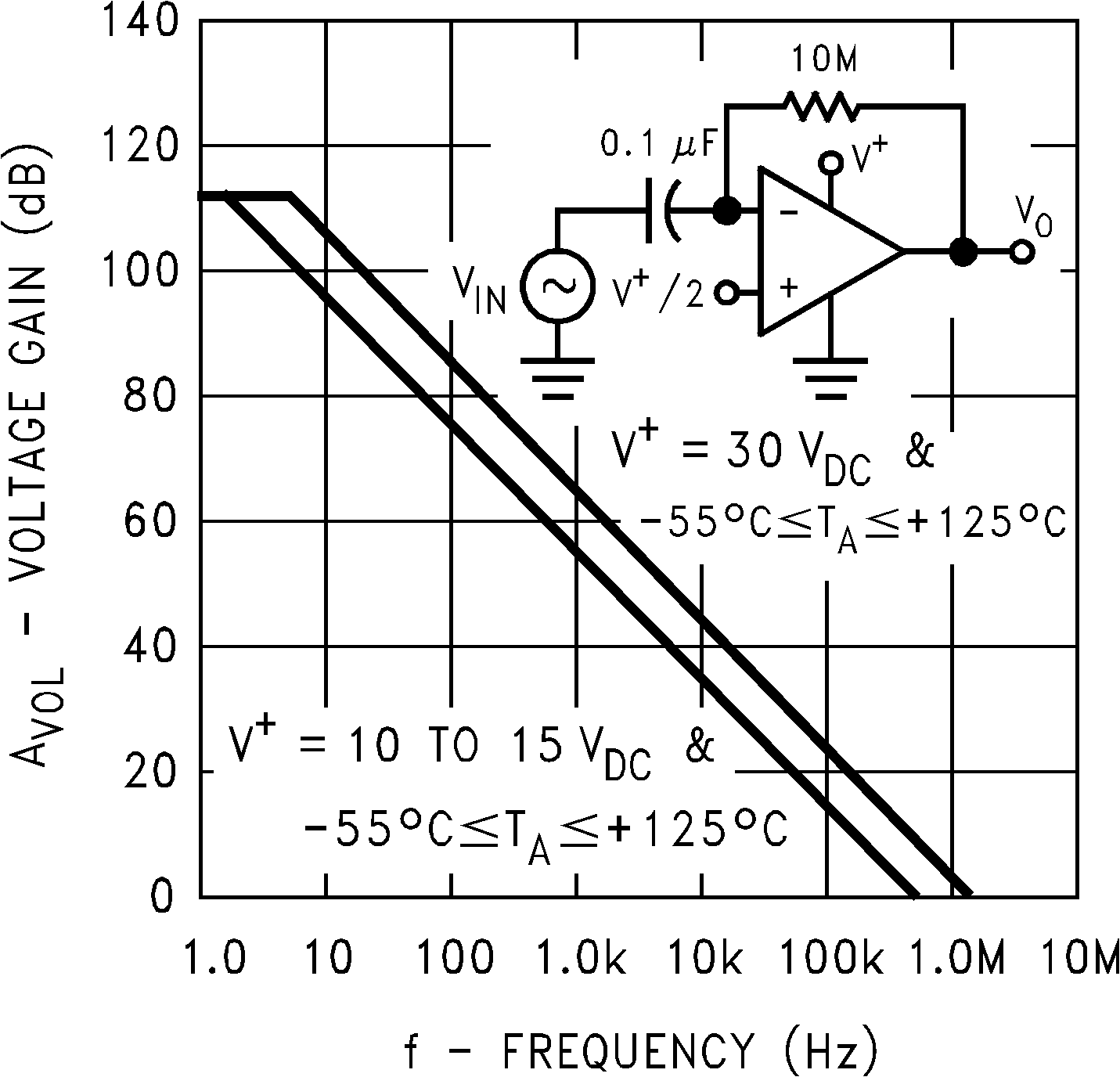

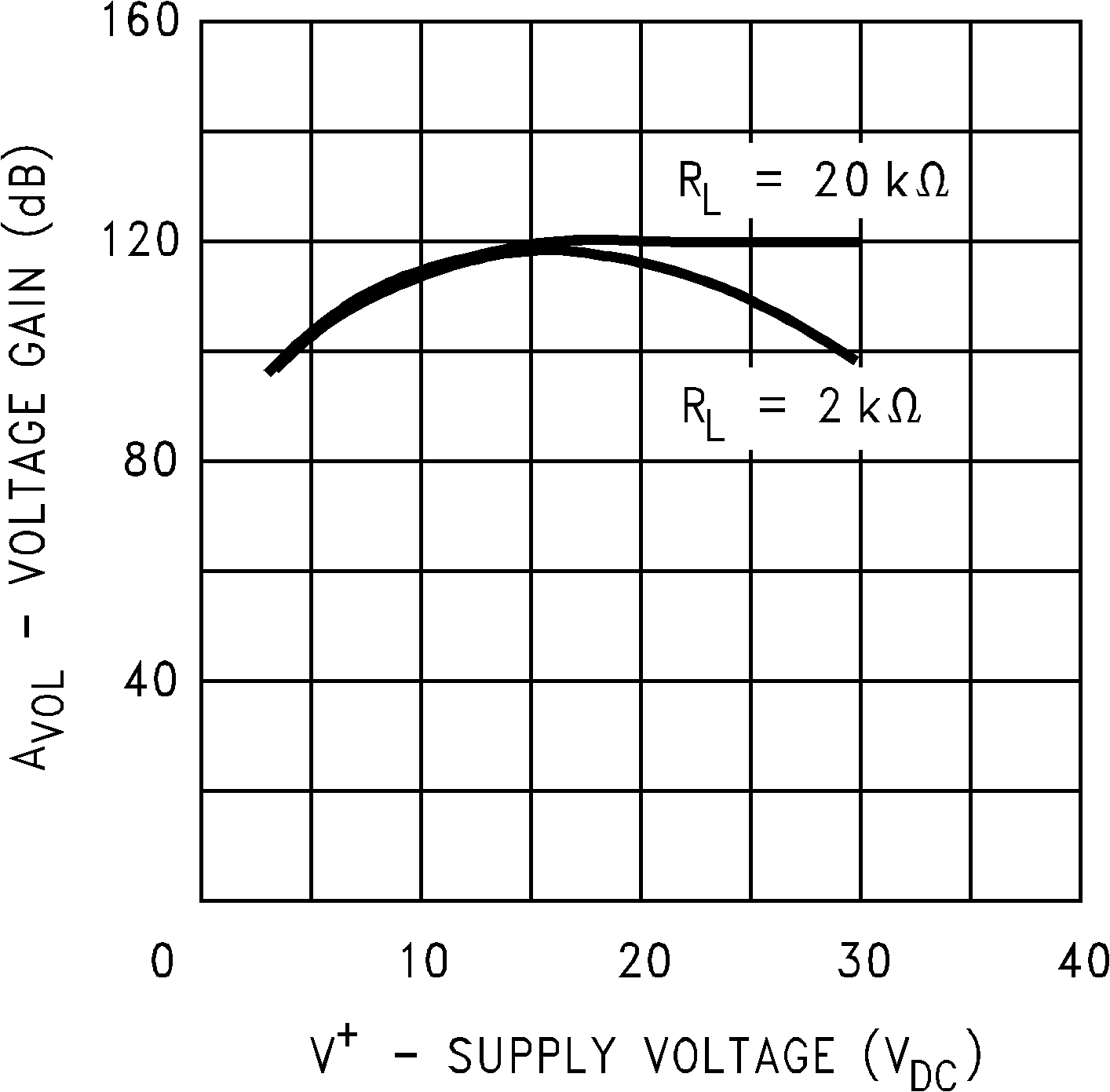

Large Signal Voltage Gain		V⁺ = 15V, R_L≥ 2 kΩ, (V_O = 1 V to 11 V), T_A = 25°C		50	100		25	100		25	100		V/mV

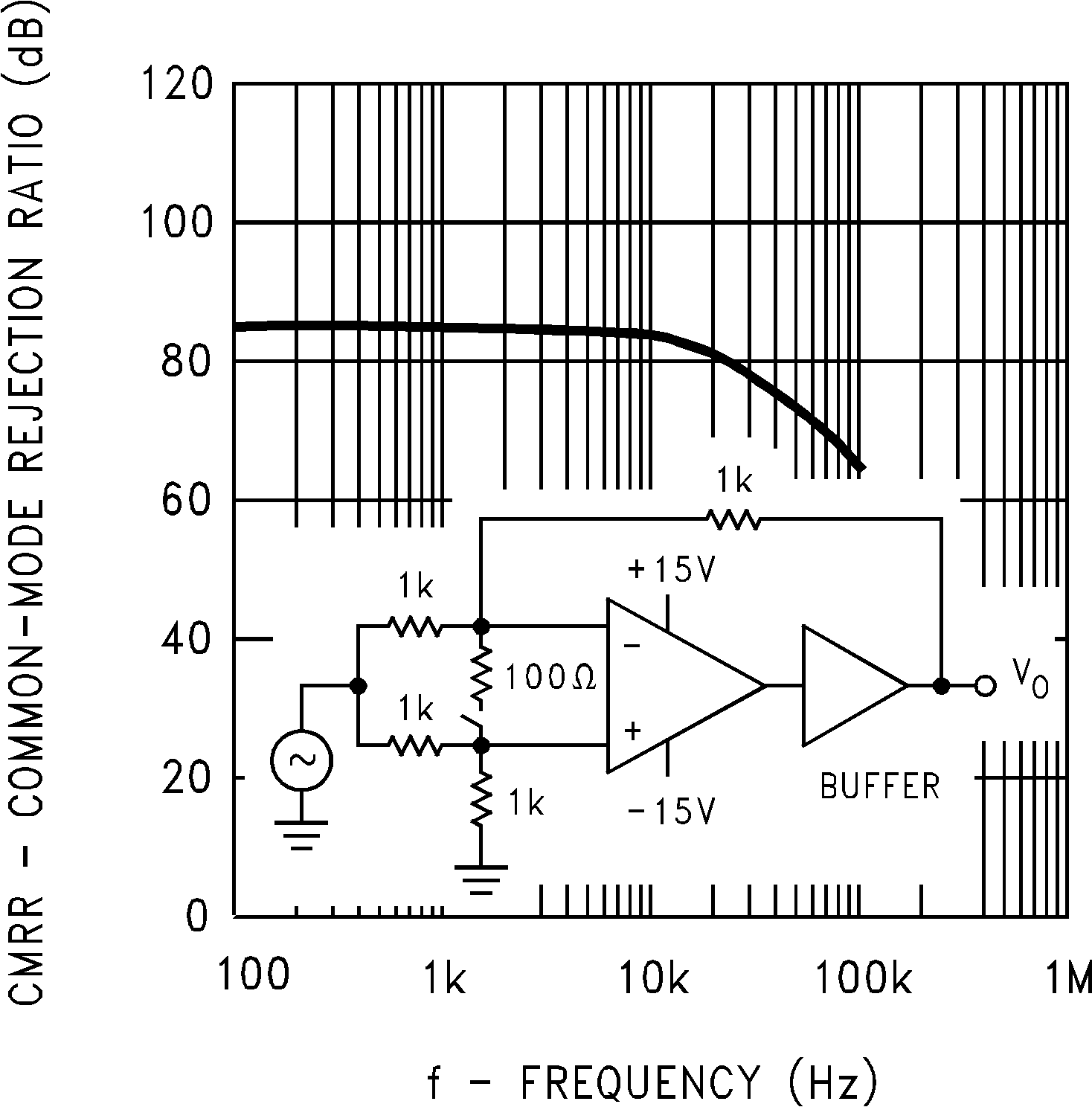

Common-Mode Rejection Ratio		DC, V_CM = 0 V to V⁺ − 1.5 V, T_A = 25°C		70	85		65	85		50	70		dB
Power Supply Rejection Ratio		V⁺ = 5 V to 30 V (LM2902-N, V⁺ = 5 V to 26 V), T_A = 25°C		65	100		65	100		50	100		dB
Amplifier-to-Amplifier Coupling⁽⁵⁾		f = 1 kHz to 20 kHz, T_A = 25°C (Input Referred)			−120			−120			−120		dB

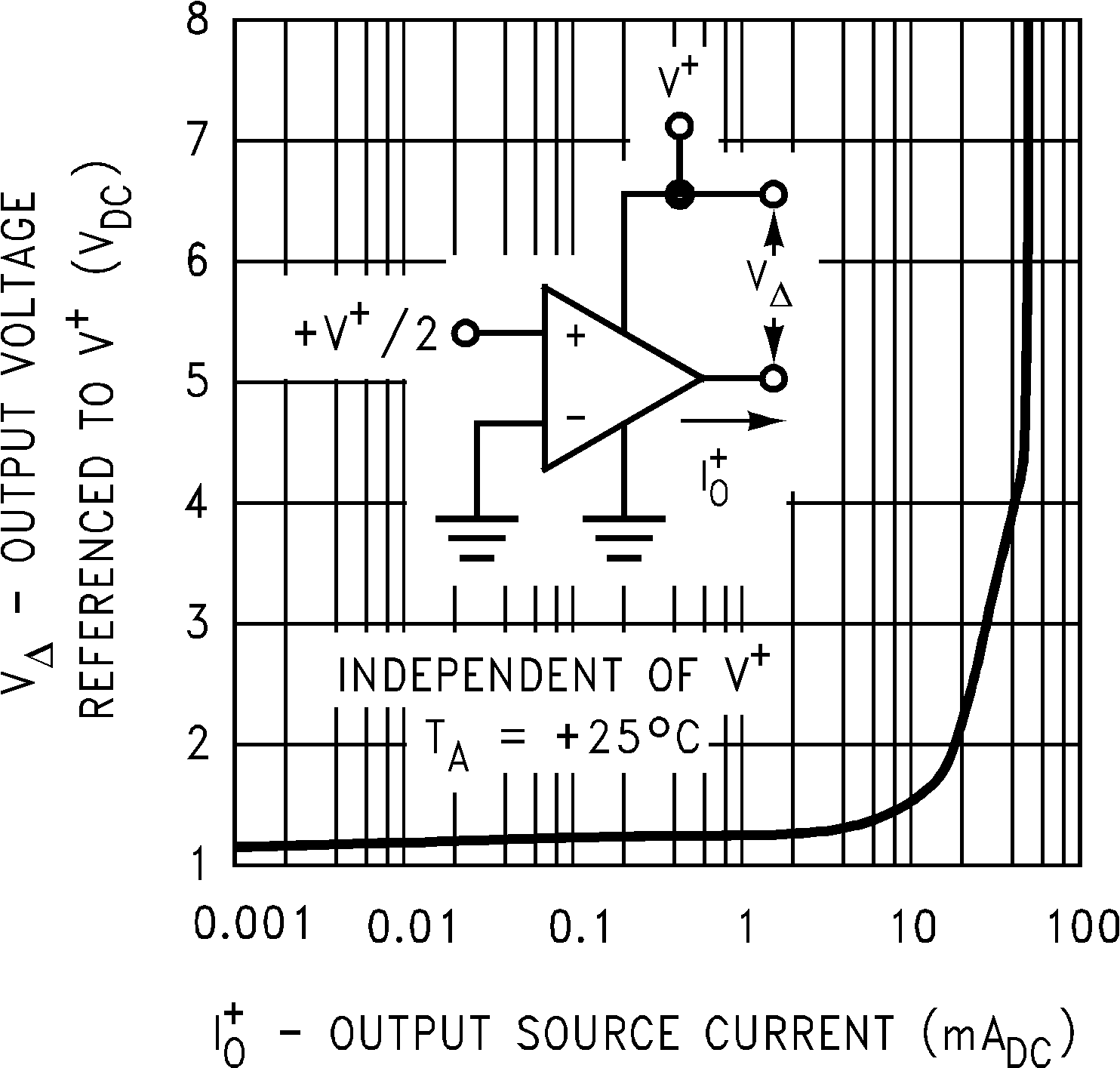

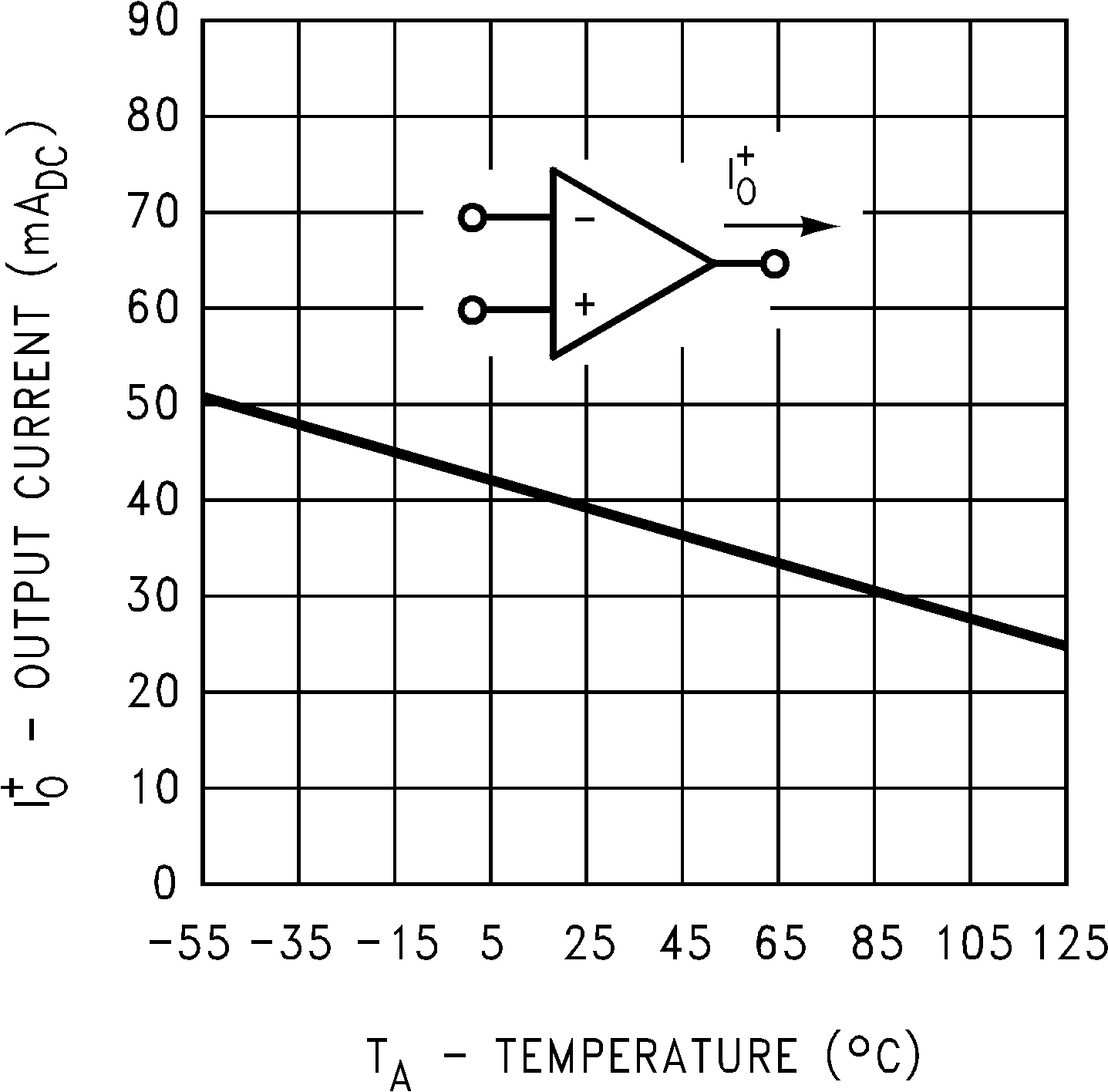

Output Current	Source	V_IN⁺ = 1 V, V_IN⁻ = 0 V, V⁺ = 15 V, V_O = 2 V, T_A = 25°C		20	40		20	40		20	40		mA

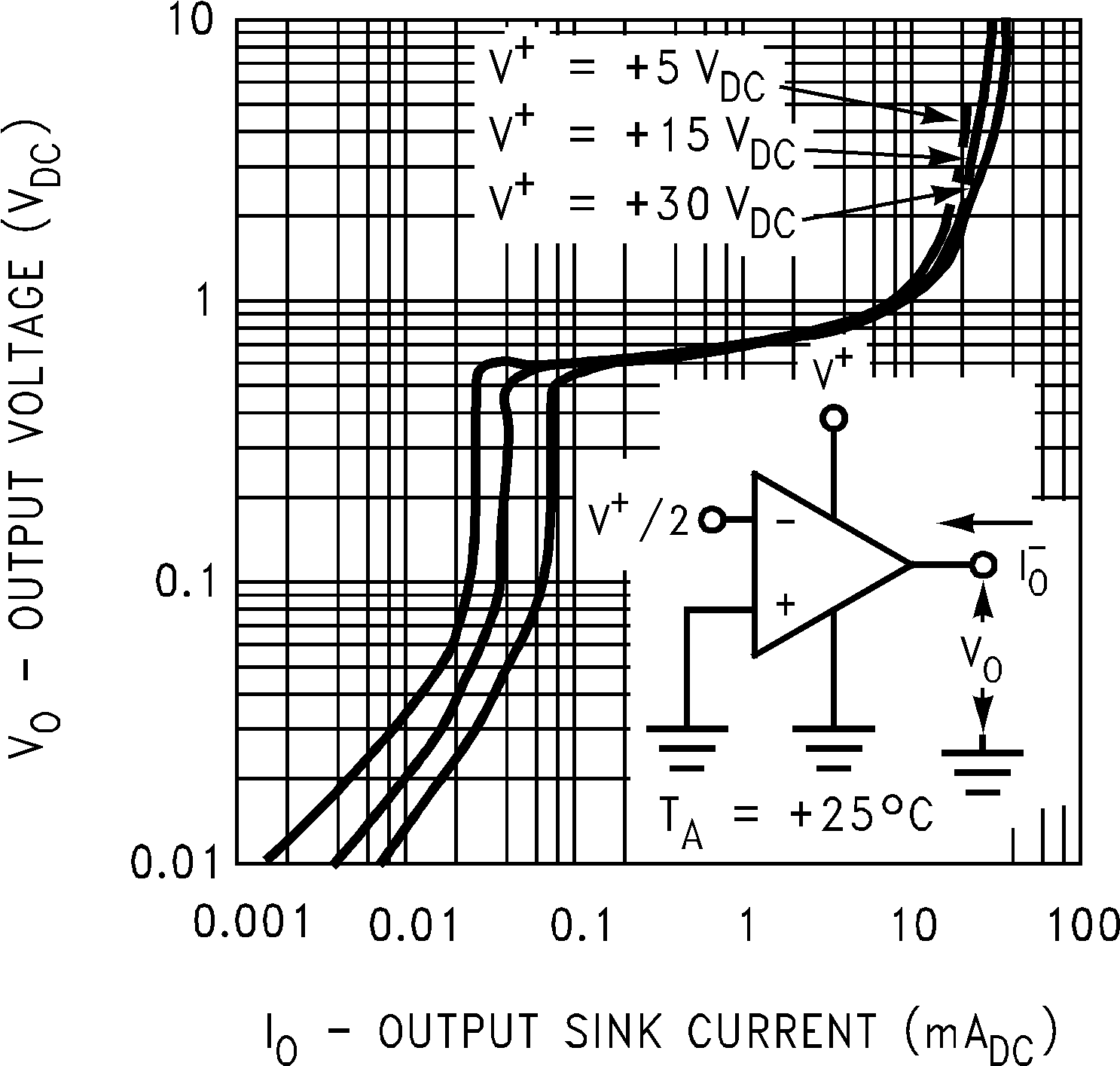

	Sink	V_IN⁻ = 1 V, V_IN⁺ = 0 V, V⁺ = 15 V, V_O = 2 V, T_A = 25°C		10	20		10	20		10	20		mA
	Sink	V_IN⁻ = 1 V, V_IN⁺ = 0 V, V⁺ = 15 V, V_O = 200 mV, T_A = 25°C		12	50		12	50		12	50		µA
Short Circuit to Ground		V⁺ = 15 V, T_A = 25°C⁽²⁾			40	60		40	60		40	60	mA
Input Offset Voltage		See ⁽²⁾				7			9			10	mV
V_OS Drift		R_S = 0 Ω			7			7			7		µV/°C
Input Offset Current		I_IN(+) − I_IN(−), V_CM = 0 V				100			150		45	200	nA
I_OS Drift		R_S = 0 Ω			10			10			10		pA/°C
Input Bias Current		I_IN(+) or I_IN(−)			40	300		40	500		40	500	nA
Input Common-Mode Voltage Range⁽⁴⁾		V⁺ = 30 V, (LM2902-N, V⁺ = 26 V)		0		V⁺−2	0		V⁺−2	0		V⁺−2	V
Large Signal Voltage Gain		V⁺ = 15 V (V_OSwing = 1V to 11V), R_L ≥ 2 kΩ		25			15			15			V/mV

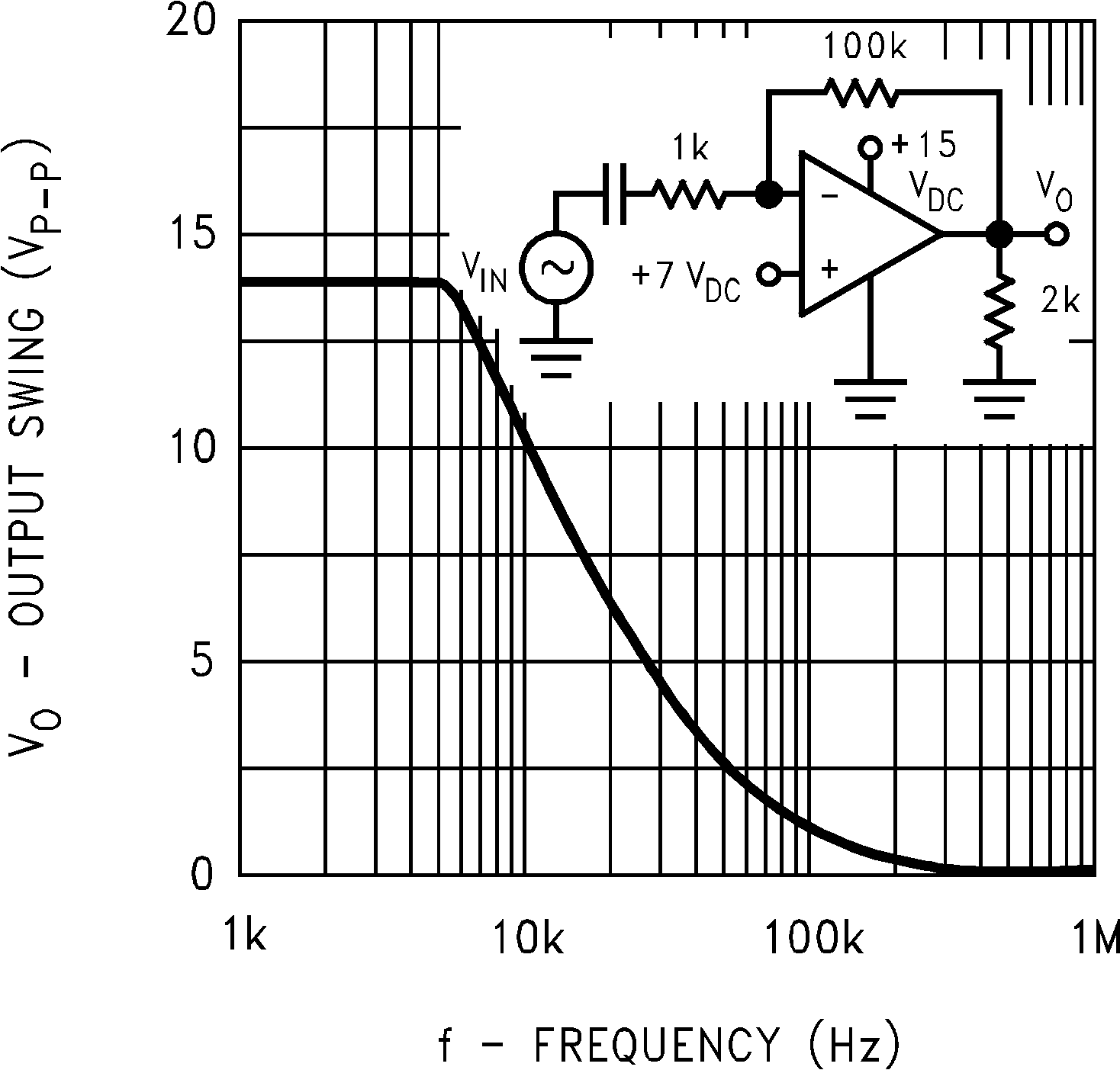

Output Voltage Swing	V_OH	V⁺ = 30 V (LM2902-N, V⁺ = 26 V)	R_L = 2 kΩ	26			26			22			V
	V_OH	V⁺ = 30 V (LM2902-N, V⁺ = 26 V)	R_L = 10 kΩ	27	28		27	28		23	24		V
	V_OL	V⁺ = 5 V, R_L = 10 kΩ			5	20		5	20		5	100	mV
Output Current	Source	V_O = 2 V	V_IN⁺ = 1 V, V_IN⁻ = 0 V, V⁺ = 15 V	10	20		10	20		10	20		mA
Output Current	Sink		V_IN⁻ = 1 V, V_IN⁺ = 0 V, V⁺ = 15 V	5	8		5	8		5	8		mA
