OPAx202 Precision, Low-Noise, Heavy Capacitive Drive, 36-V Operational Amplifiers
1 Features
- Precision super-beta performance:
- Low offset voltage: 200 µV (maximum)
- Ultra-low drift: 1 µV/°C (maximum)
- Excellent efficiency:
- Quiescent current: 580 µA (typical)
- Gain-bandwidth product: 1 MHz
- Low input voltage noise: 9 nV/√Hz
- Ease of use, design simplicity:
- Heavy capacitive load drive: 5-µs settling time with 25 nF
- Ultra-high input impedance: 3000 GΩ and
0.5 pF - EMI hardened, thermal, and short-circuit protection
- Stable Performance:
- High CMRR and AOL: 126 dB (minimum)
- High PSRR: 126 dB (minimum)
- Low bias current: 2 nA (maximum)
- Low 0.1-Hz to 10-Hz noise: 0.2 µVPP
- Wide supply voltage: ±2.25 V to ±18 V
- Replaces OP-07 and OP-27
3 Description
The OPA202, OPA2202, and OPA4202 (OPAx202) are a family of devices built on TI's industry-leading precision super-beta, complementary, bipolar semiconductor process. This process offers ultra-low flicker noise, low offset voltage, low offset voltage temperature drift, and excellent linearity with common-mode and power-supply variation. These devices offer an exceptional combination of dc precision, heavy capacitive load drive, and protection against external EMI, thermal, and short-circuit events.
The supply current is 580 µA at ±18 V. The OPAx202 do not exhibit phase inversion, and the series is stable with high capacitive loads. The OPAx202 are fully specified with a temperature range from –40°C to +105°C.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| OPA202 | SOIC (8) | 4.90 mm × 3.91 mm |
| SOT-23 (5) | 2.90 mm × 1.60 mm | |
| VSSOP (8) | 3.00 mm × 3.00 mm | |
| OPA2202 | VSSOP (8) | 3.00 mm × 3.00 mm |
| SOIC (8) | 4.90 mm × 3.91 mm | |
| OPA4202 | SOIC (14) | 8.65 mm × 3.91 mm |
| TSSOP (14) | 5.00 mm × 4.40 mm |
- For all available packages, see the package option addendum at the end of the data sheet.
Device Images
OPAx202 Excel Even When Directly Driving Heavy Capacitive Loads

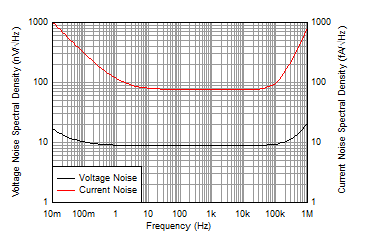

Input Voltage Noise and Current Noise Spectral Density vs Frequency
4 Revision History
Changes from G Revision (March 2020) to H Revision
- Changed OPA202 VSSOP (DGK) and OPA2202 SOIC (D) packages from preview to production data (active)Go
Changes from F Revision (February 2020) to G Revision
- Changed OPA4202 14-pin TSSOP (PW) package from preview to production data (active) Go
- Added OPA2202 8-pin SOIC (D) preview package and associated content to data sheetGo
Changes from E Revision (February 2020) to F Revision
- Added OPA4202 14-pin TSSOP (PW) preview package and associated content to data sheetGo
- Changed Figure 19, Input Voltage Noise and Current Noise Spectral Density vs Frequency, to more accurately represent the input current noise behavior of the deviceGo
Changes from D Revision (December 2019) to E Revision
- Added OPA202 8-pin VSSOP (DGK) preview package and associated content to data sheetGo
Changes from C Revision (October 2018) to D Revision
- Changed OPA2202 and OPA4202 devices from advanced information (preview) to production data (active) Go
Changes from B Revision (December 2018) to C Revision
- Added OPA2202 and OPA4202 preview devices and associated content to data sheetGo
- Deleted Operating Voltage section; redundant informationGo
Changes from A Revision (September 2018) to B Revision
- Changed SOT-23 package from preview to production dataGo
Changes from * Revision (October 2017) to A Revision
- Added preview content for SOT-23 package offering Go
5 Pin Configuration and Functions
Pin Functions: OPA202
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | NO. | |||
| D (SOIC)
DGK (VSSOP) |
DBV (SOT-23) | |||
| –IN | 2 | 4 | I | Inverting input |
| +IN | 3 | 3 | I | Noninverting input |
| NC | 1, 5, 8 | — | — | No internal connection (can be left floating) |
| OUT | 6 | 1 | O | Output |
| V– | 4 | 2 | — | Negative (lowest) power supply |
| V+ | 7 | 5 | — | Positive (highest) power supply |
Pin Functions: OPA2202
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| –IN A | 2 | I | Inverting input channel A |
| +IN A | 3 | I | Noninverting input channel A |
| –IN B | 6 | I | Inverting input channel B |
| +IN B | 5 | I | Noninverting input channel B |
| OUT A | 1 | O | Output channel A |
| OUT B | 7 | O | Output channel B |
| V– | 4 | — | Negative supply |
| V+ | 8 | — | Positive supply |
Pin Functions: OPA4202
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| –IN A | 2 | I | Inverting input channel A |
| +IN A | 3 | I | Noninverting input channel A |
| –IN B | 6 | I | Inverting input channel B |
| +IN B | 5 | I | Noninverting input channel B |
| –IN C | 9 | I | Inverting input channel C |
| +IN C | 10 | I | Noninverting input channel C |
| –IN D | 13 | I | Inverting input channel D |
| +IN D | 12 | I | Noninverting input channel D |
| OUT A | 1 | O | Output channel A |
| OUT B | 7 | O | Output channel B |
| OUT C | 8 | O | Output channel C |
| OUT D | 14 | O | Output channel D |
| V– | 11 | — | Negative supply |
| V+ | 4 | — | Positive supply |
