Data Sheet
SNx4AHC86 Quadruple 2-Input Exclusive-OR Gates
1 Features
- Operating range 2-V to 5.5-V VCC
- Latch-up performance exceeds 250 mA
per JESD 17 - ESD protection exceeds JESD 22
- 2000-V human-body model (A114-A)
- 200-V machine model (A115-A)
- 1000-V charged-device model (C101)
2 Applications
- Detect phase differences in input signals
- Create a selectable inverter or buffer
3 Description
The SNx4AHC86 devices are quadruple 2-input exclusive-OR gates. These devices perform the Boolean function Y = A ⊕ B or Y = AB + A B in positive logic.
A common application is as a true or complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Device Information
| PART NUMBER | RATING | PACKAGE(1) |
|---|---|---|
| SN74AHC86 | Commercial | BQA (WQFN, 14) |
| D (SOIC, 14) | ||
| DB (SSOP, 14) | ||
| DGV (TVSOP, 14) | ||
| N (PDIP, 14) | ||
| NS (SOP, 14) | ||
| PW (TSSOP, 14) | ||
| RGY (VQFN, 14) | ||
| SN54AHC86 | Military | J (CDIP, 14) |
| W (CFP, 14) | ||
| FK (LCCC, 20) |
(1) For all available packages, see the orderable addendum at the end of
the data sheet.

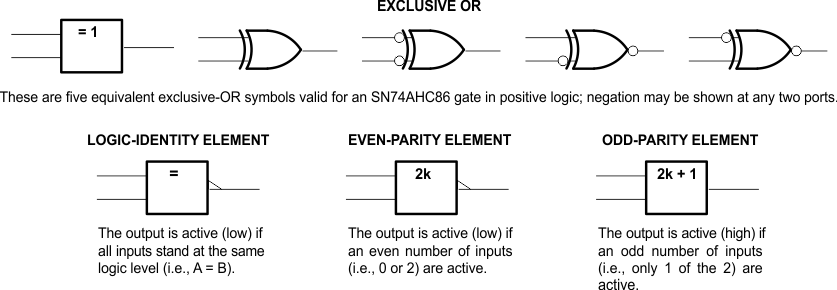

Exclusive–OR Logic
